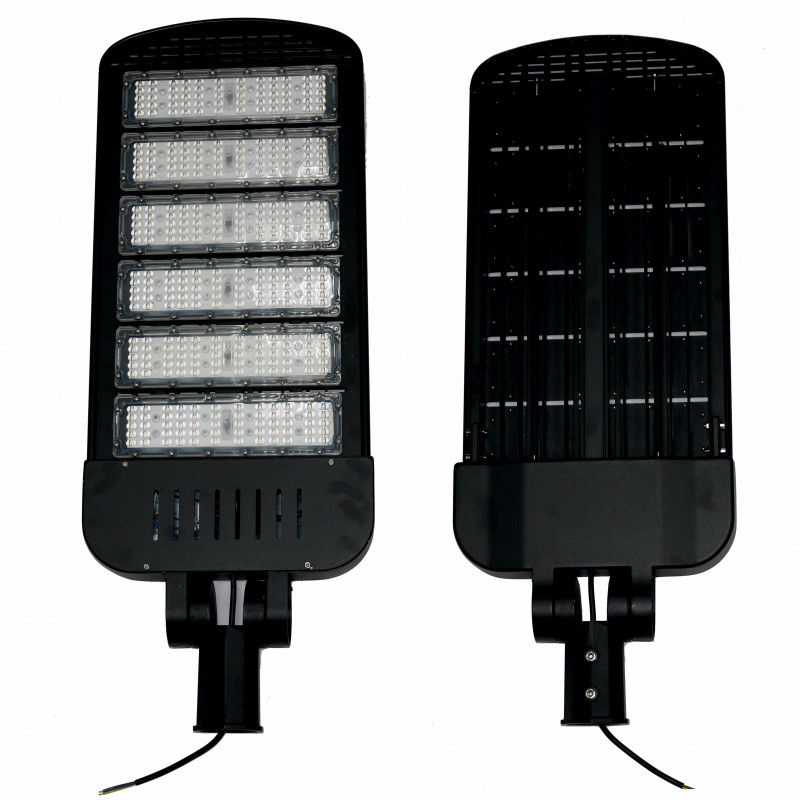

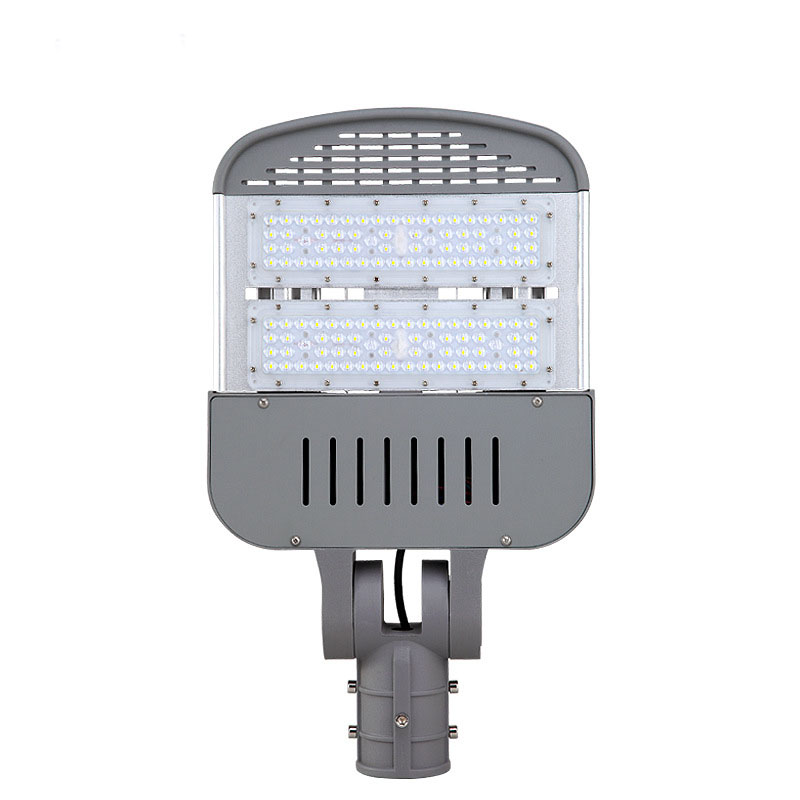

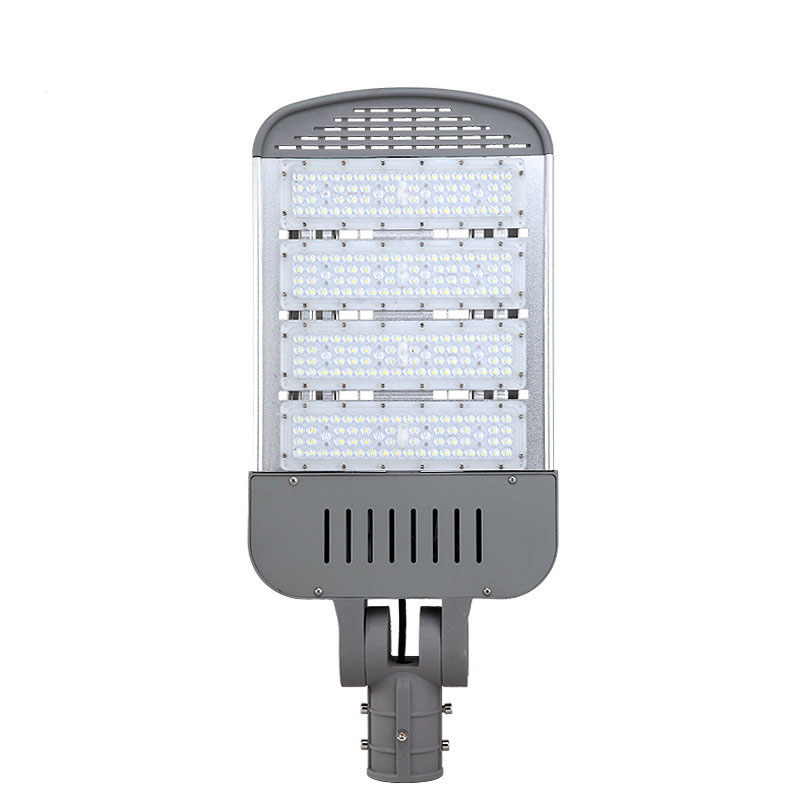

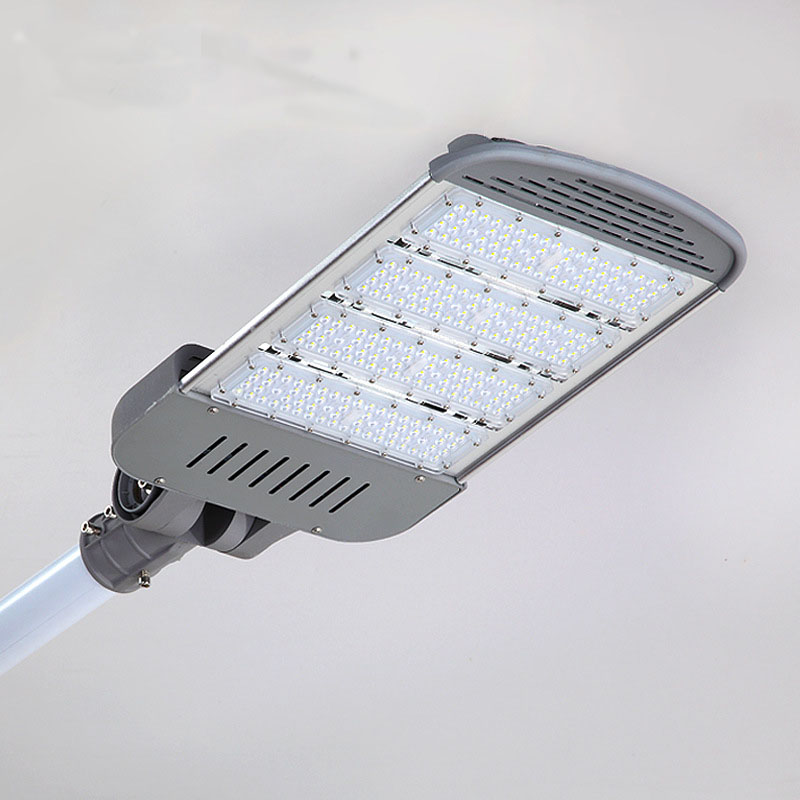

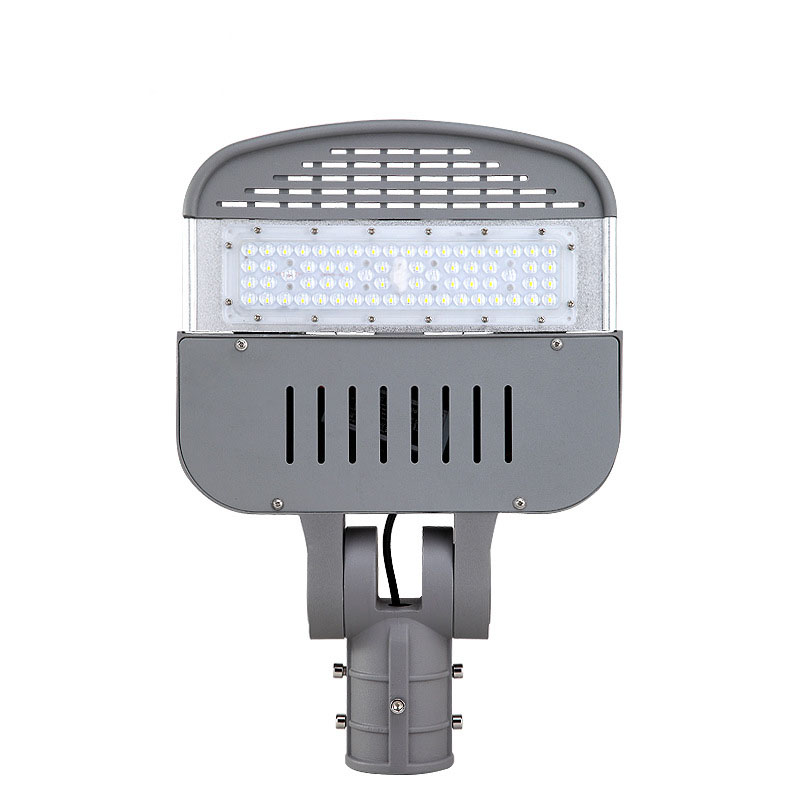

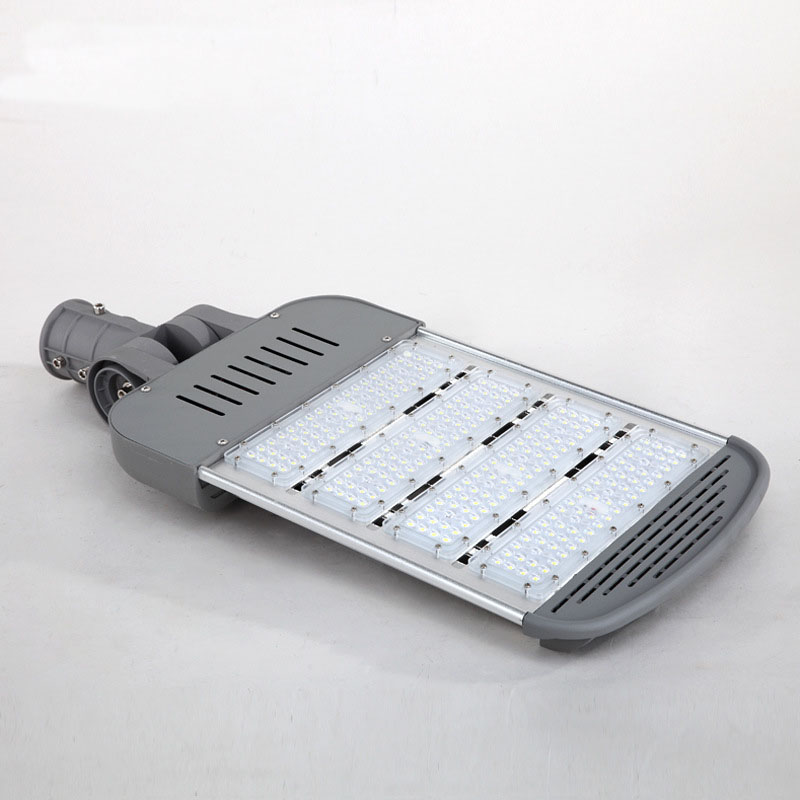

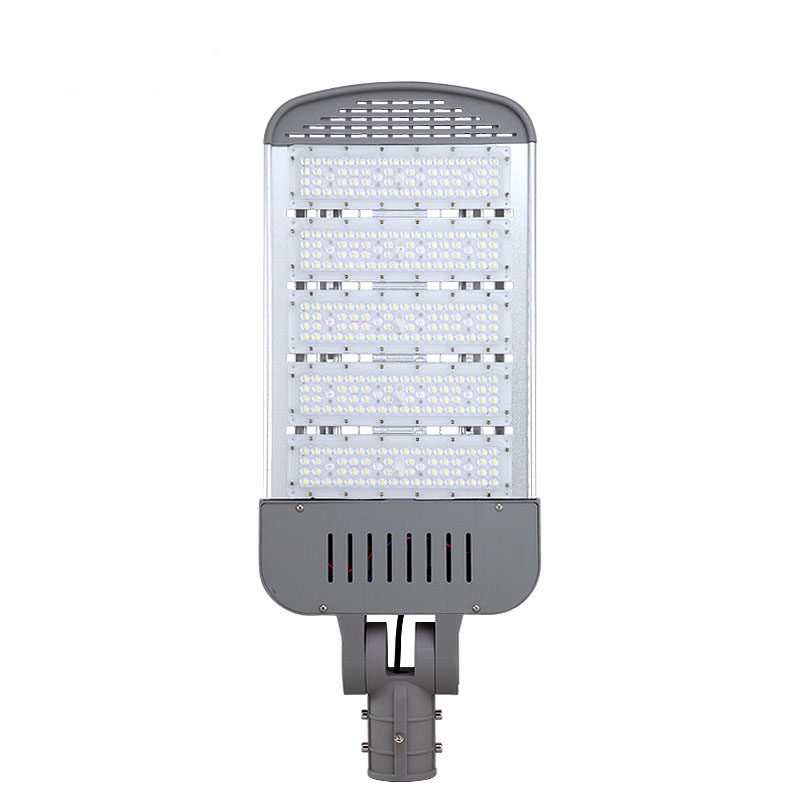

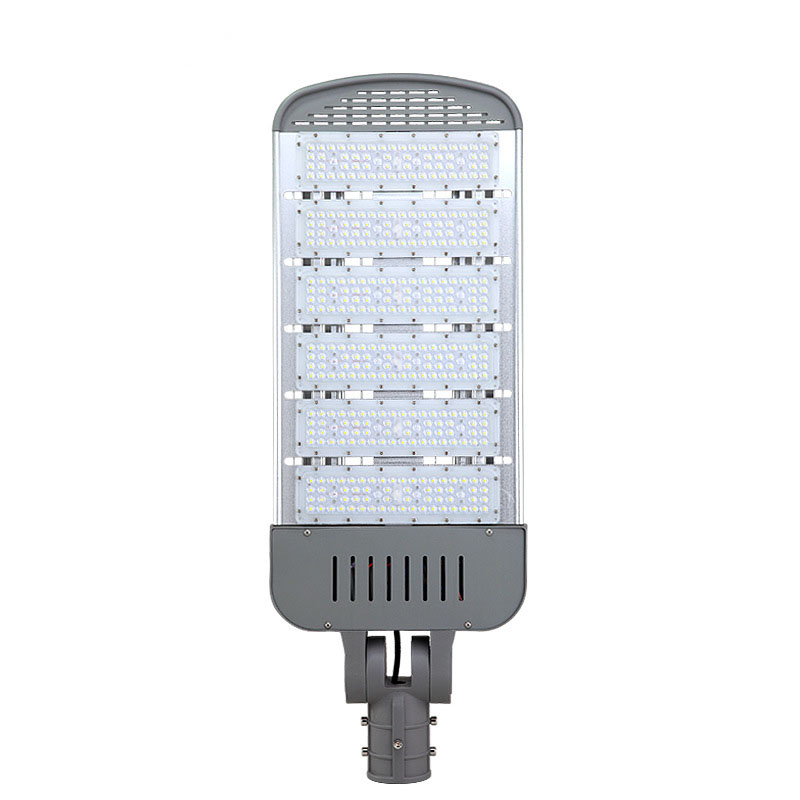

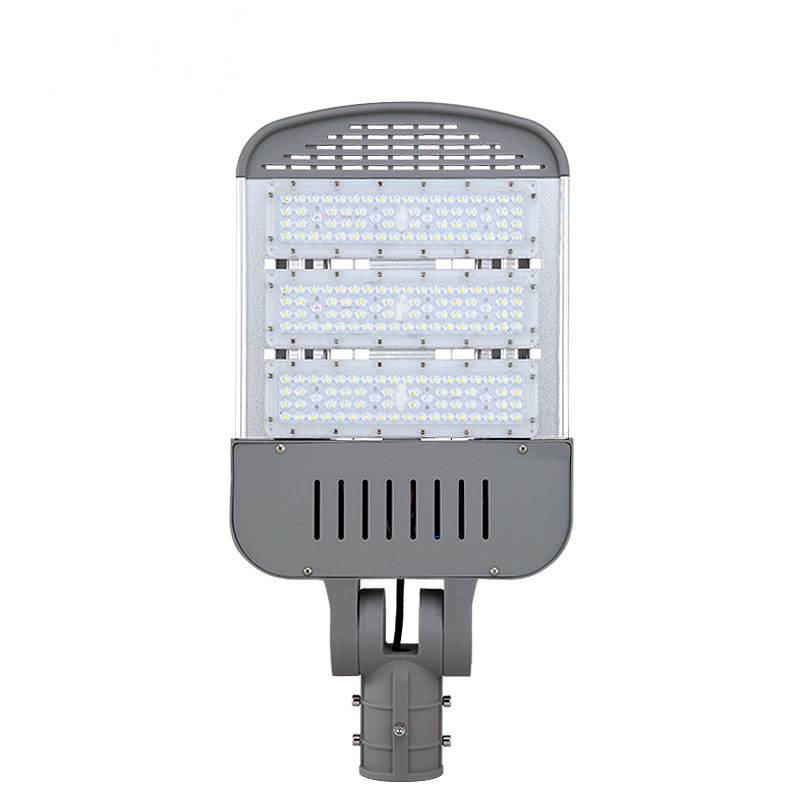

High Power LED Street Light 50W-400W

| Model: HM-SL-P09 Series
Key Feature
HM-SL-P09 Series street light is a high power type, up to 400Watt Max, a good choice for high poles such as 12m,14mm,15m, and 20m, it is made of pure aluminum and PC Cover, high brightness SMD 3030 LED Chips, lumens up to 140lm/W output, save more 70% energy than traditional street light fitting.

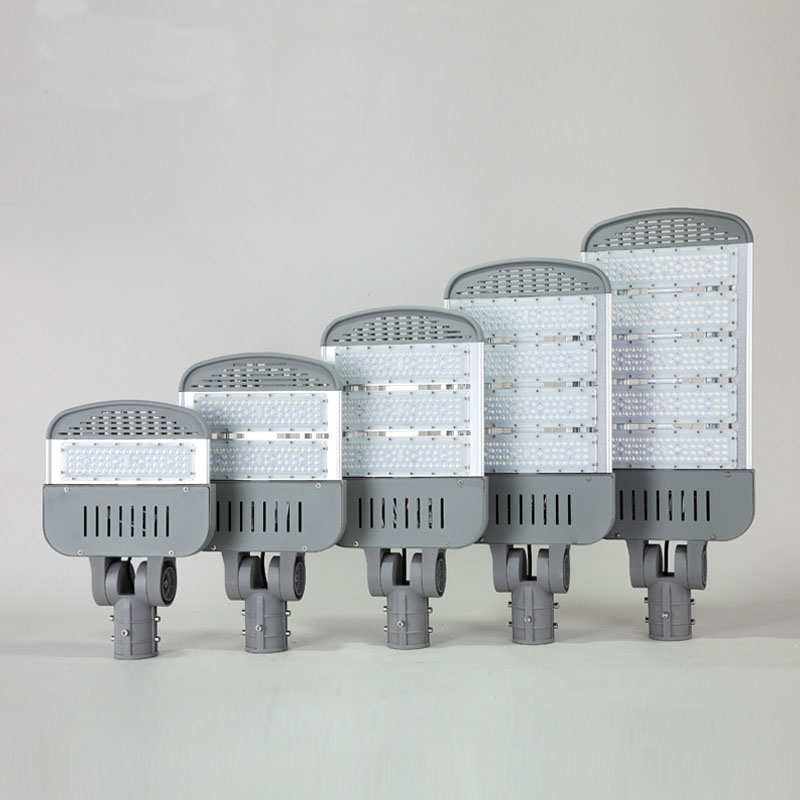

Wattage: 50W 100W 150W 200W 250W 300W 400W
Installation Diameter: D60-65mm
Luminaires lumens: 120-140lm/W output
Installation height: 4m-20meter
Beam angle: 70*140°
Control way: ON/OFF as standard, Dimming/photocell can be customized
Working temperature: -25℃/+55℃
Products Details

Body & Finished

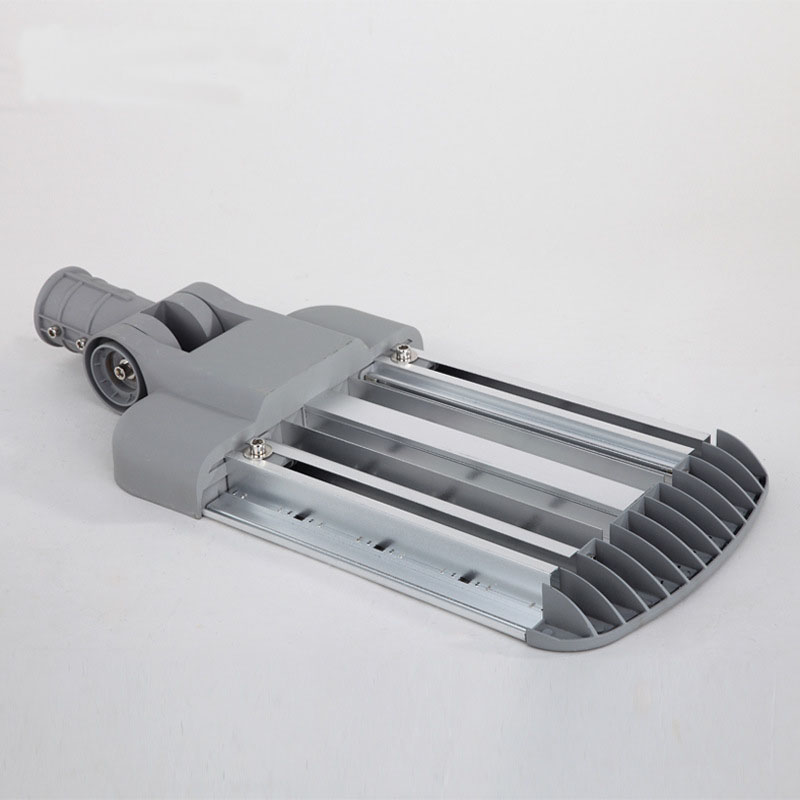

  • Housing: Aluminum, the end cap can be painted in black color or grey color.
  • Lens/diffuser: Polycarbonate cover, Anti-UV. High light transmittance reaches more than 90%, with strong sealing performance.
  • PCB: 1.5mm thickness is the standard, and the thermal conductivity is 1.5. Each PCB will be 56 pieces of SMD LED or 64 pieces of SMD 3030 for 50 watts.
  • Screws: Stainless steel
  • Cables & wires: 0.75²*3 input cable, High and low-temperature resistance, good insulation performance.

Control Gear/Led driver

  • Led driver brand: SUNCOM brand as a standard, Meanwell, Philips, Oram, and MOSO brands are optional
  • Input voltage: 100-277VAC 50/60Hz
  • THD: <10%
  • Built-in surge protection:6/10KV
  • Power factor: >0.95
  • Efficiency: >90%
  • Certificates: CB CE RoHS TUV ENEC CCC
  • Warranty: 3/5 years

Optical

  • Light source: Lumileds(Philips)/Bridgelux
  • LED Type: SMD3030
  • Lumens:150-180lm/W
  • SDCM: <5
  • Color temp: 3000K Warm white, 4000-4500K daylight; 5700-6500K cold white
  • LM80
