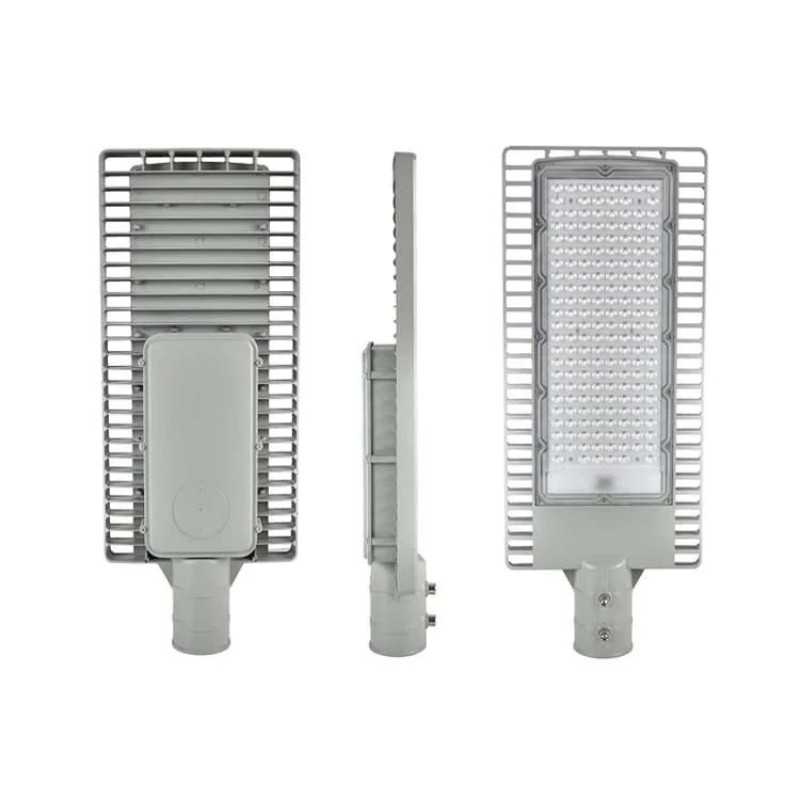

DC12V 24V 48V Led Street Lights

| Model: HM-SL-P05 Series
Key Feature
HM-SL-P05 Series LED street light is with DC12V 24V or 48V low voltage led driver, made of die-cast aluminum housing and high-brightness Philips SMD LED chips. Available 30W 50W 100W 150W 180W 200W 250W in wattages. These led street lights can be used widely as parking lot lights, road lighting, driveway lighting, and backyard lighting by solar systems.

Wattages: 30W 50W 100W 150W 180W 200W 250W
Install diameter: 40mm 50mm 60mm
Protection grade: IP66 IK08
Color temperature: 3000K warm white, 4500k daylight, 6500k cold white
Control Way: ON/OFF
Working temperature:-25℃ to 55℃
Storage temperature: -30/+60℃
Working life:>50000Hrs
Certificates: CE RoHS
Products Details

Body & Finished

  • Housing: Aluminum
  • Housing color: Black/Grey optional
  • Lens: Polycarbonate cover, Anti-UV. High light transmittance reaches more than 90%, with strong sealing performance.
  • Screws: Stainless steel
  • Cables & wires: 0.75²*3 input cable, High and low-temperature resistance, good insulation performance.

Control Gear/Led driver

  • Led driver Type: Isolated driver
  • Input voltage: 24V dc as a standard, DC12V, 36V 48V optional
  • THD: <15%
  • Built-in surge protection:4KV
  • Power factor: >0.9
  • Efficiency: >82%
  • Warranty: 2/3/5 years

Optical

  • Light source: Lumileds(Philips)/Bridgelux
  • LED Type: SMD3030
  • Lumens:150-180lm/W
  • SDCM: <5
  • Color temp: 3000K Warm white, 4000-4500K daylight; 5700-6500K cold white
  • LM80
