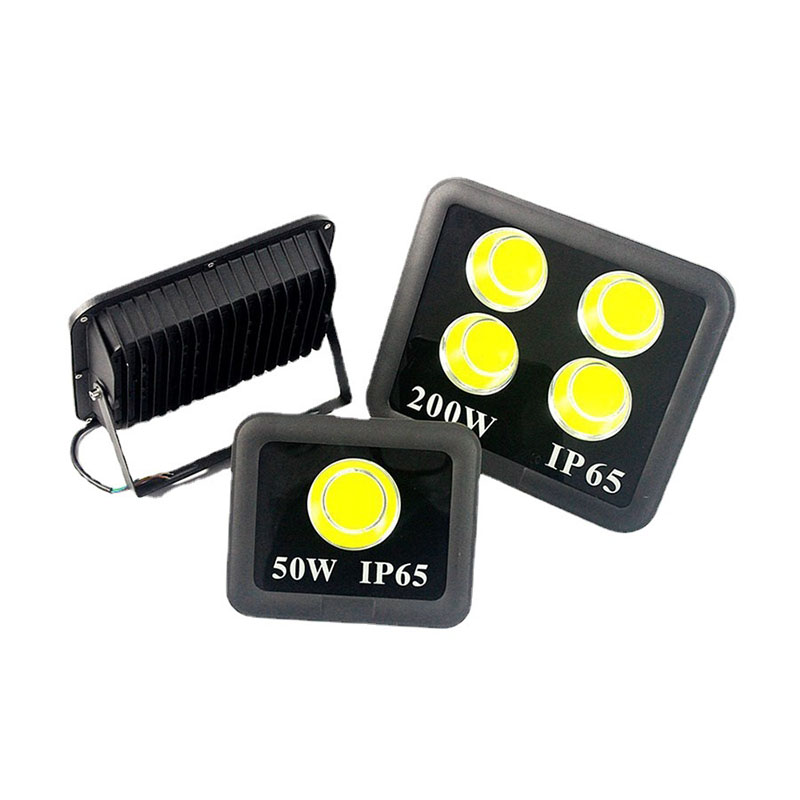

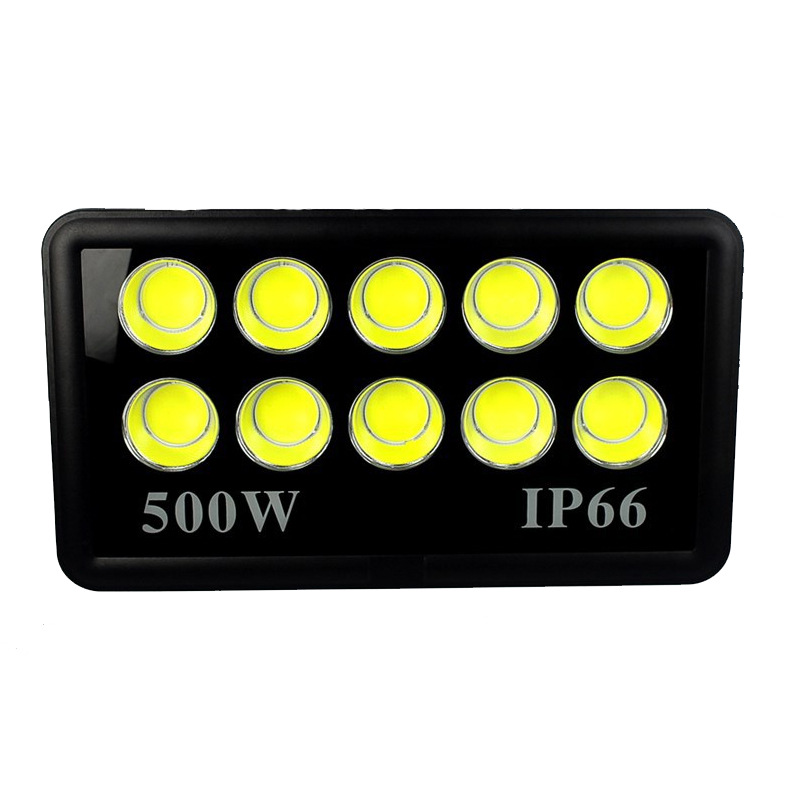

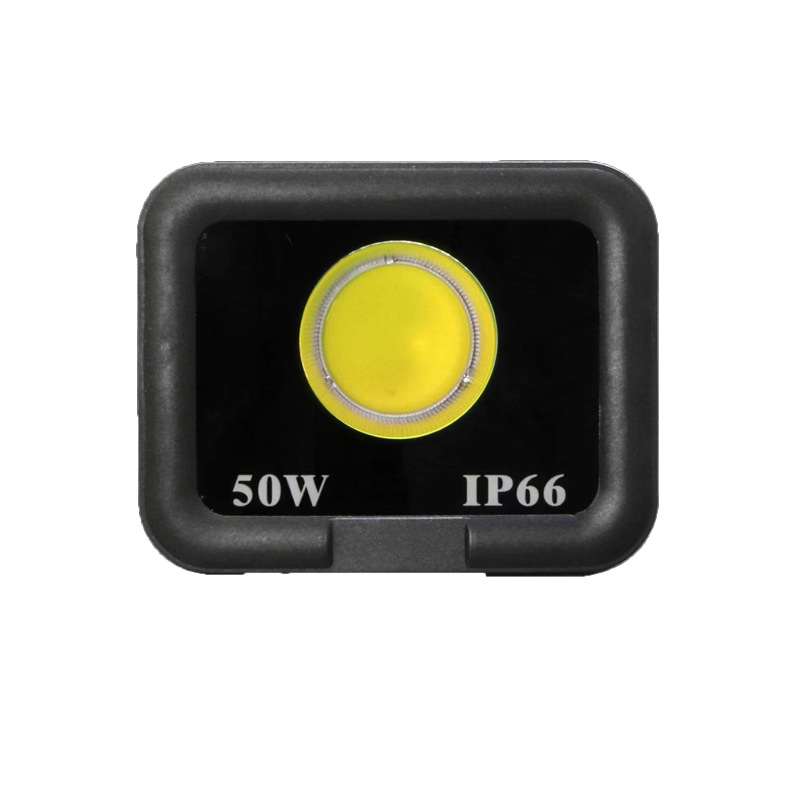

LED Flood Light from 50W to 1000W

| Model: HM-FL-GA05 Series
Key Feature

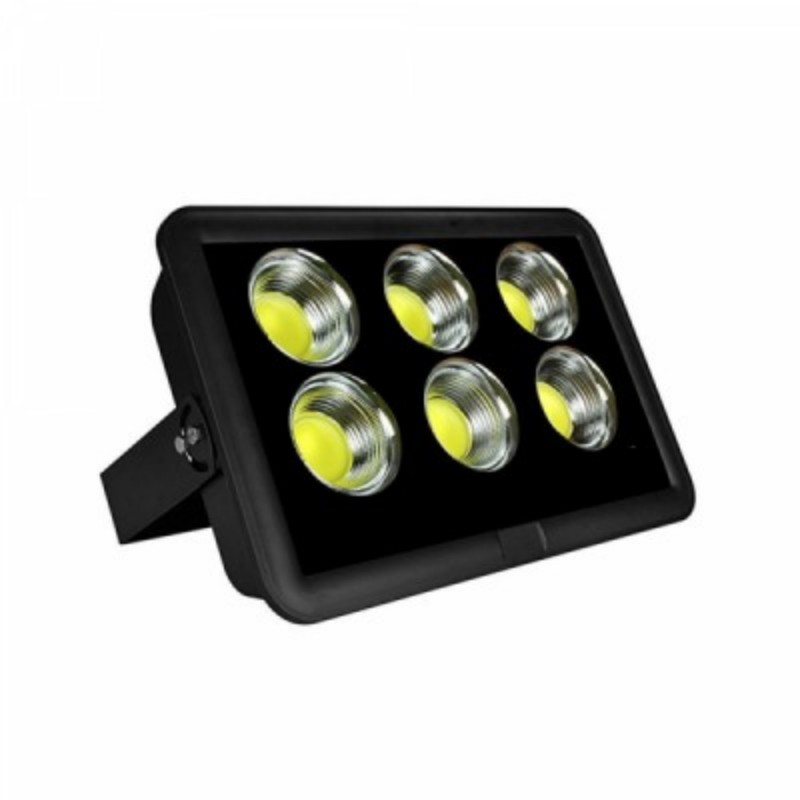

The high-power LED floodlight of HM-FL-GA05 series is equipped with a mounting bracket and is designed to illuminate architectural facades, construction sites, football fields, warehouses, outdoor areas, parking lots and other areas requiring high-quality and good lighting. Power 300W, color temperature 5000K (daytime), 185-265V/50 Hz, 30000Lm, IP65, dispersion angle 120°, operating temperature -30°C - +60°C, color black, body die-cast aluminum + glass.

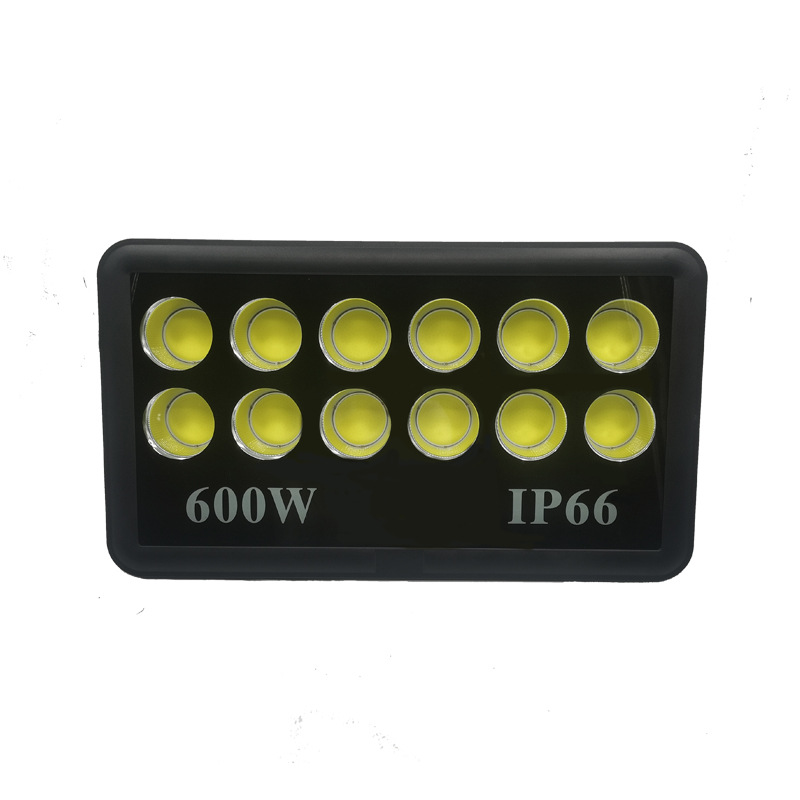

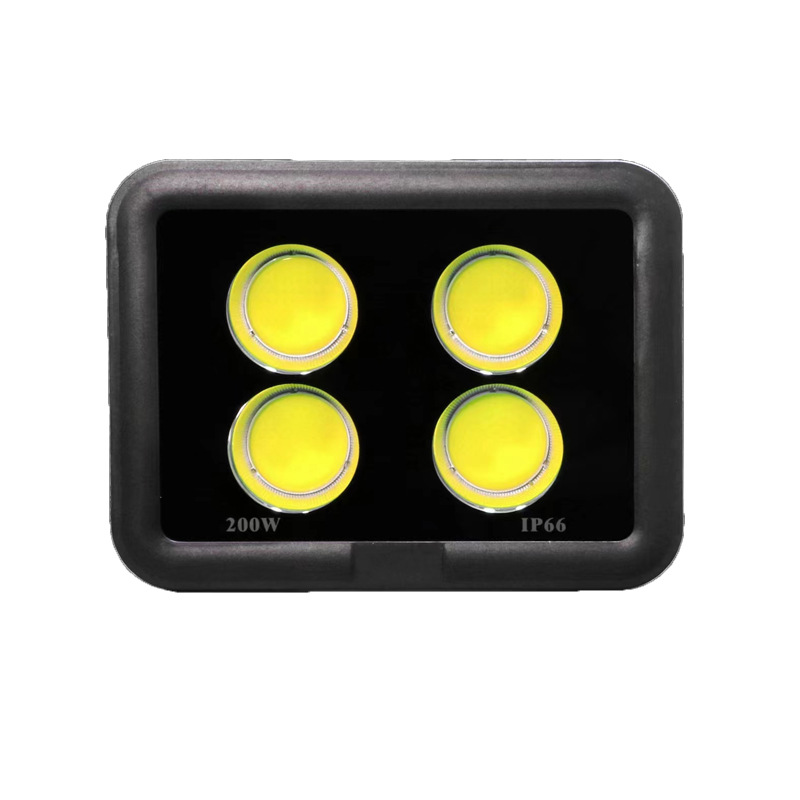

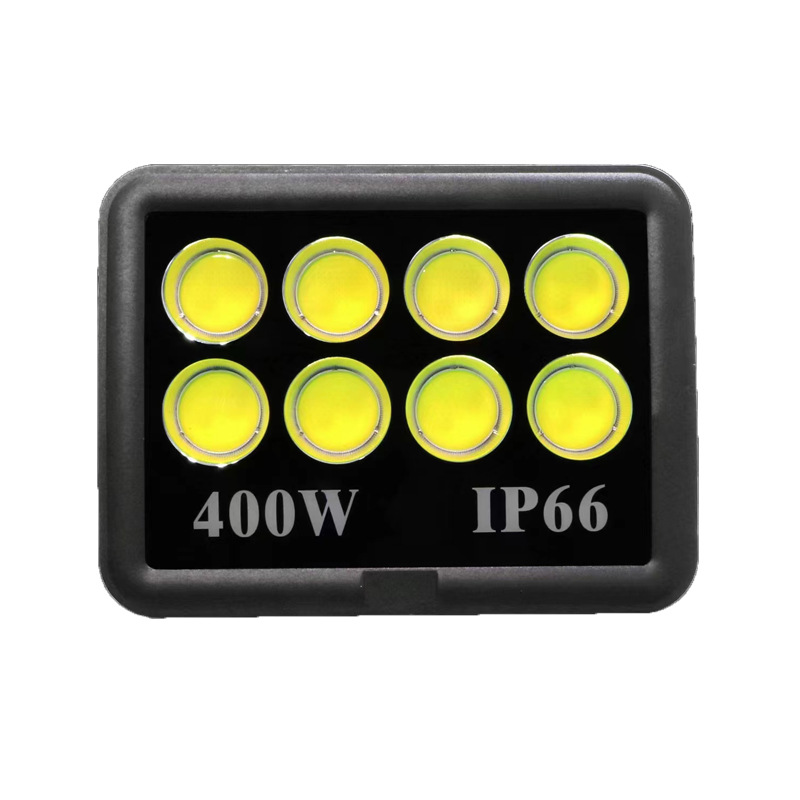

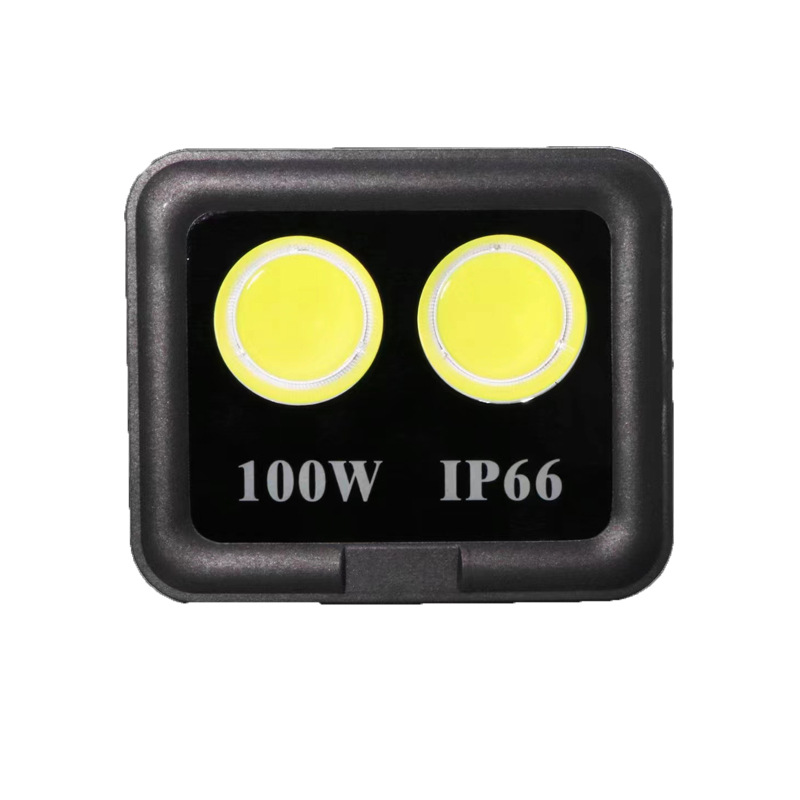

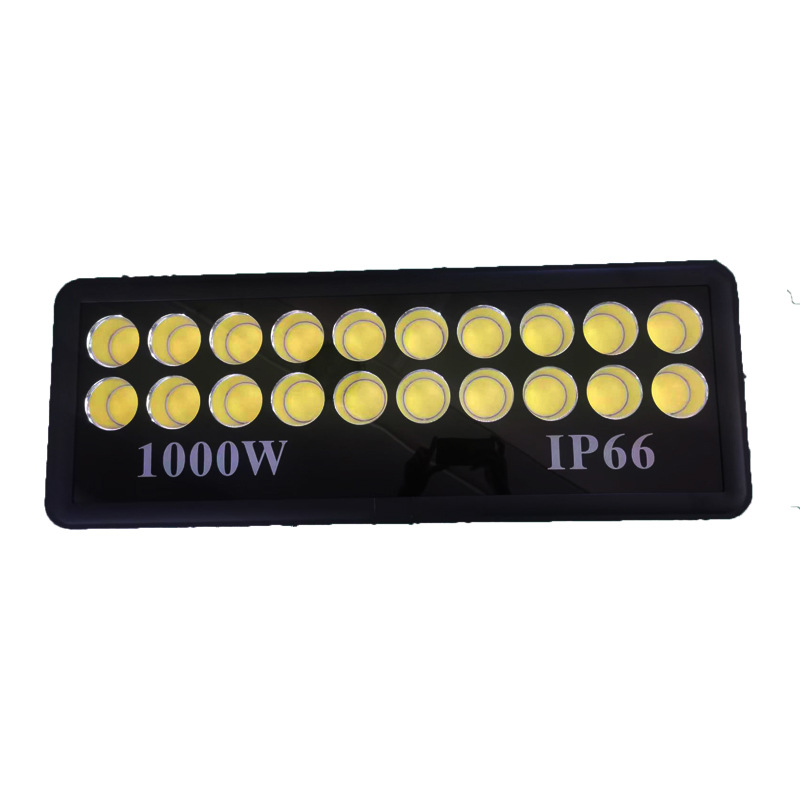

Wattages: 50W 100W 200W 300W 400W 500W 600W 1000W
Luminaire lumens:140-150lm/W output
Surge protection: 6KV
Working temperature: -25/+55℃
Storage temperature: -30/+60℃
Manufacturer warranty: 3/5 years
Products Details

Body & Finished

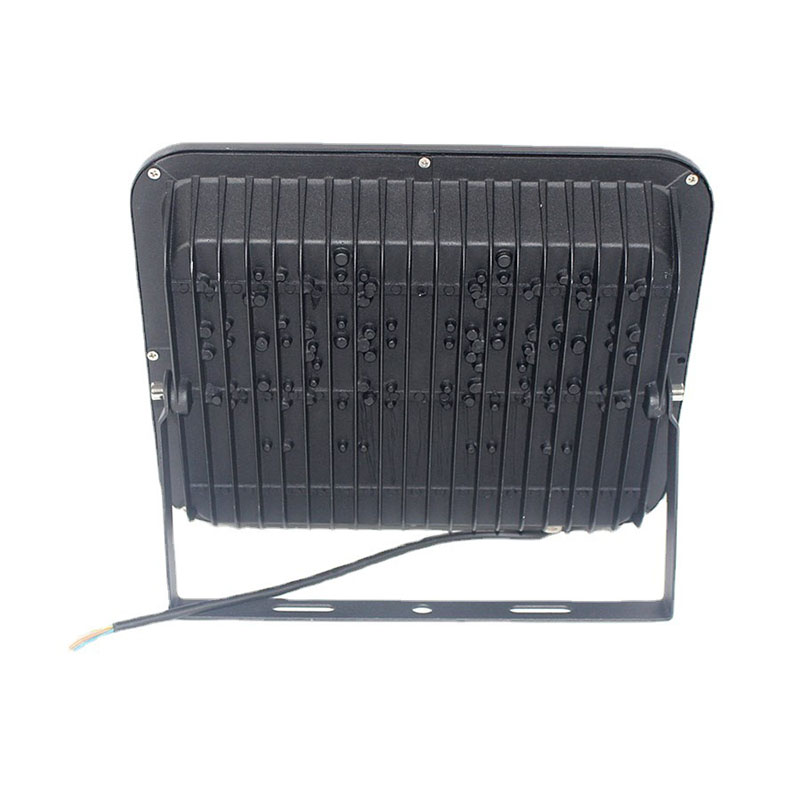

  • Housing: Die-cast aluminum housing, matt black finish options
  • Cover: High-strength tempered glass,2.5mm thickness can adapt to the harsh outdoor environment
  • Lens: PMMA lens cover, High light transmittance.
  • Reflector: PMM silver reflector, Anti-UV, and High reflectivity
  • Screws: 201 or 304 Stainless Steel
  • Bracket: Metal body, Black powder coated. Rotation 180°
  • Gland: Stainless steel
  • Cables & Wires: 0.75²*3 input cable, High and low-temperature resistance

Control Gear/Led Driver

  • Led driver brand: MOSO/SUNCOM brand driver as a standard, Philips/Meanwell driver options
  • Type: Non-dimmable as standard, but 0-10V or DALI dimmable driver can be optional as well.
  • Input voltage:100-277VAC 50/60Hz
  • Power Factor: >0.95
  • THD:<15%
  • IP Grade: IP66 waterproof
  • Certificates: CE SAA ENEC CCC CB approval
  • Warranty: 3/5 years

Optical

  • LED chips: Bridgelux/Lumileds SMD2835/3030 chips
  • Lumens: 160-180lm/W
  • CRI:>70 or 80
  • SDCM: <3
  • LM80
