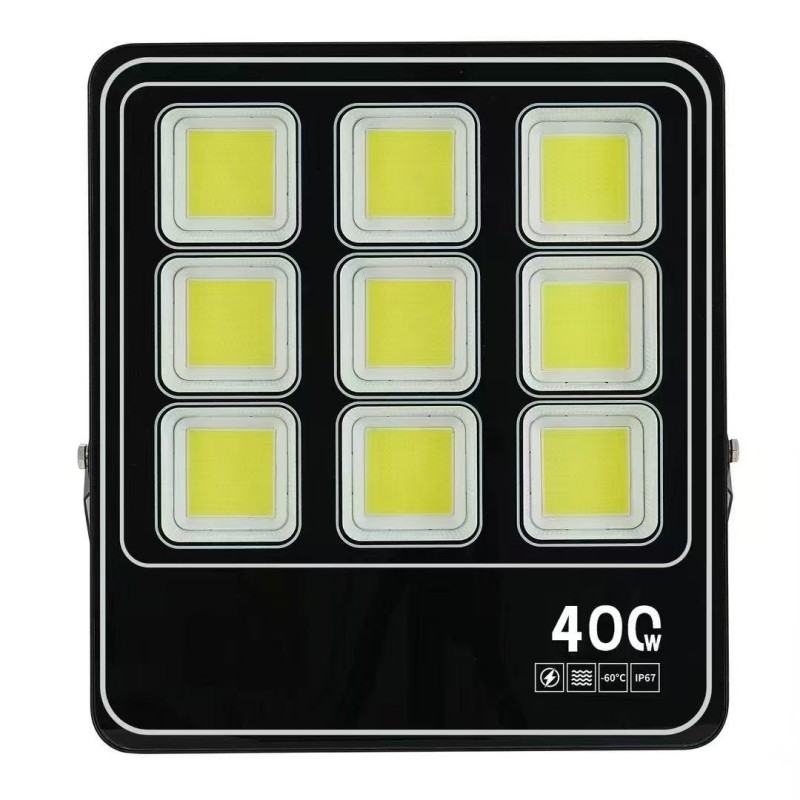

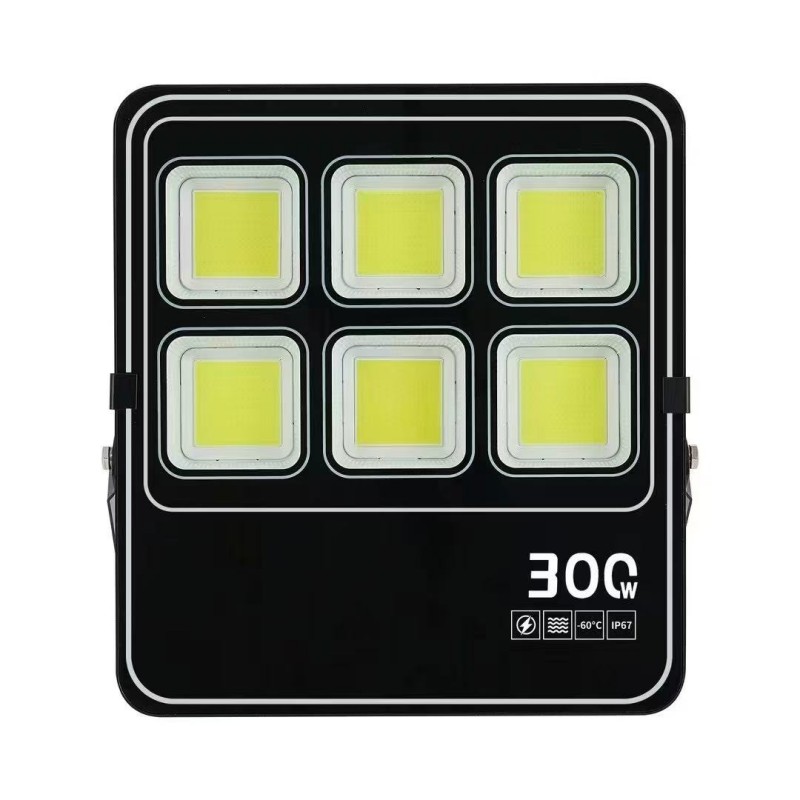

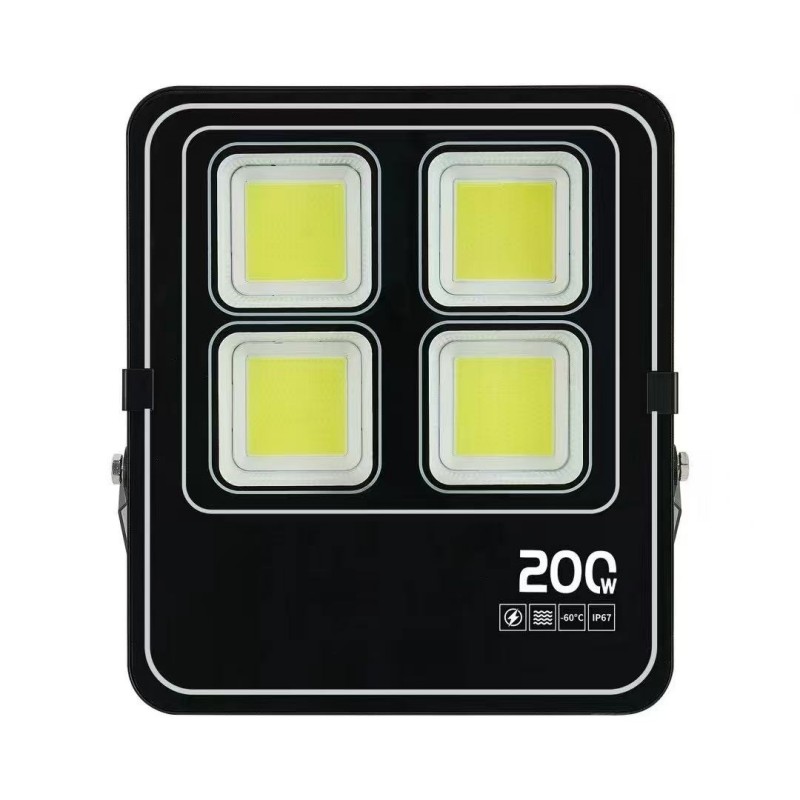

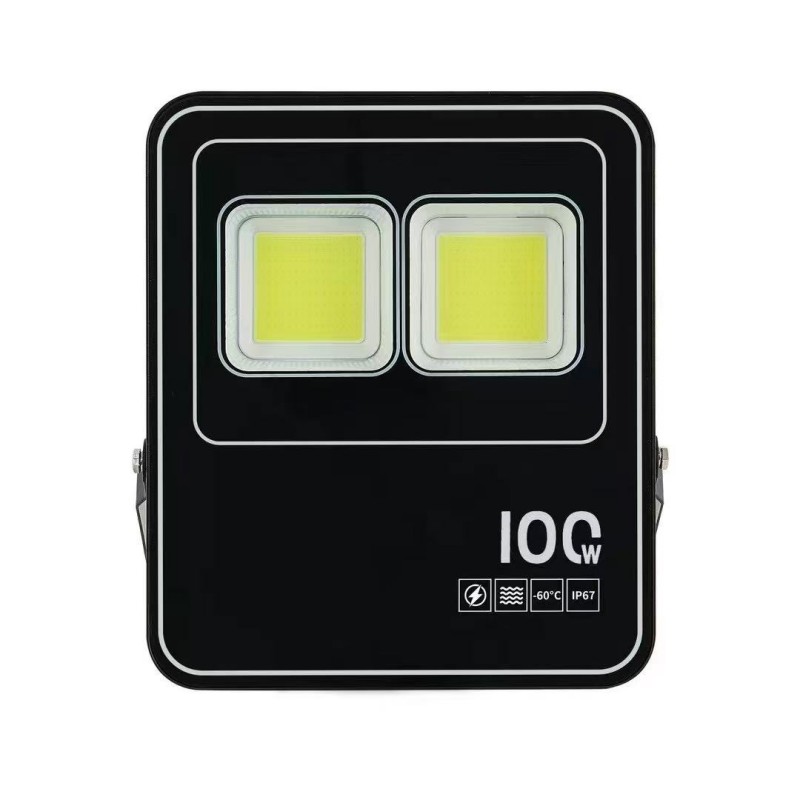

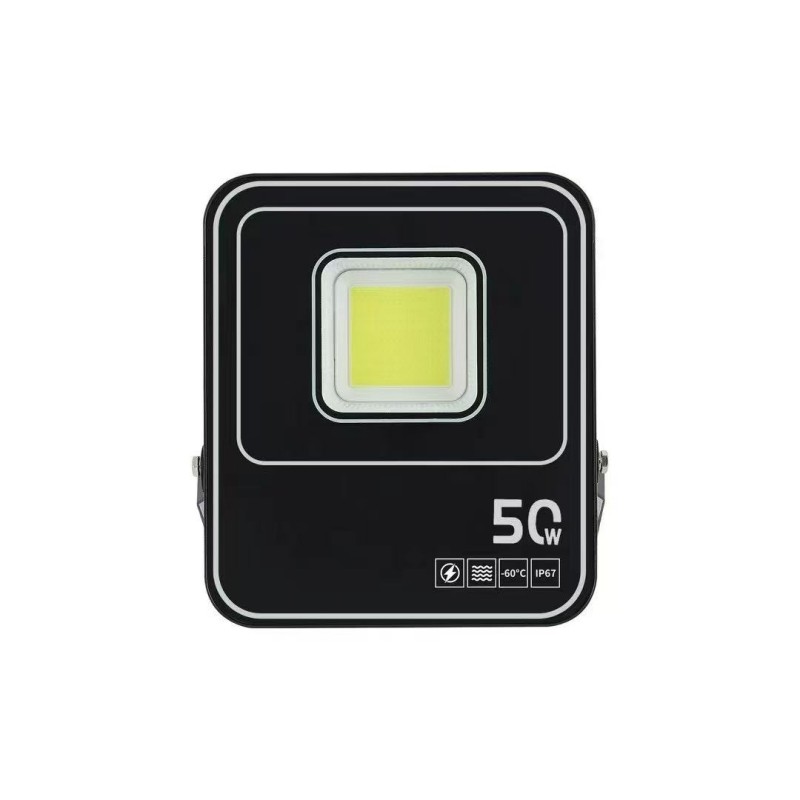

COB Outdoor Led Flood Light

| Model: HM-JX-SW Series
Key Feature
HM-JX-SW Series flood light are made of die-cast pure aluminum heat dissipation, ultra-thin lamp streamline design, with good heat dissipation effect, to ensure the service life.Ultra white tempered glass panel, strong and durable, high light transmittance, strong impact resistance. 25 °, 60 ° lens for options, meet the demand of different places of light distribution.

Wattagees: 50W 100W 200W 300W 400W
Application: High mast flood lighting, sport lighting
Luminaires lumens: 150-170lm/W
Beam angle: 30°/45°/60°/90°
Control way: ON/OFF as a standard, 0-10V/DALI dimmable optional
Manufacturer warranty: 5 years
Working life:> 100000hrs
Products Details

Body & Finished

  • Housing: Aluminum body, Black powder-coated finish.
  • Cover/lens: High-strength tempered glass, that can adapt to the harsh outdoor environment.
  • Fixings: 201 or 304 Stainless Steel.
  • Bracket: Metal body, Black powder coated. Rotation 180°.
  • Cables & Wires: 0.75²-1.0²*3 input cable, High and low-temperature resistance, good insulation performance. It is ok to be with different types of plugs.

Control Gear/Led driver

  • Led driver: Meanwell driver brand is a standard
  • Input voltage: 100-277VAC 50/60Hz
  • THD: <10%
  • Power factor: >0.95
  • Efficiency: >91%
  • IP Grade: IP67 waterproof
  • Dimmable: No
  • Warranty: 3/5Years

Optical

  • Light source: Lumileds 3030
  • Lumens: 150-180lm/W
  • CRI:>80
  • Color temperature: 3000K warm white, 4500K daylight, 6000k cold white
  • LM80
