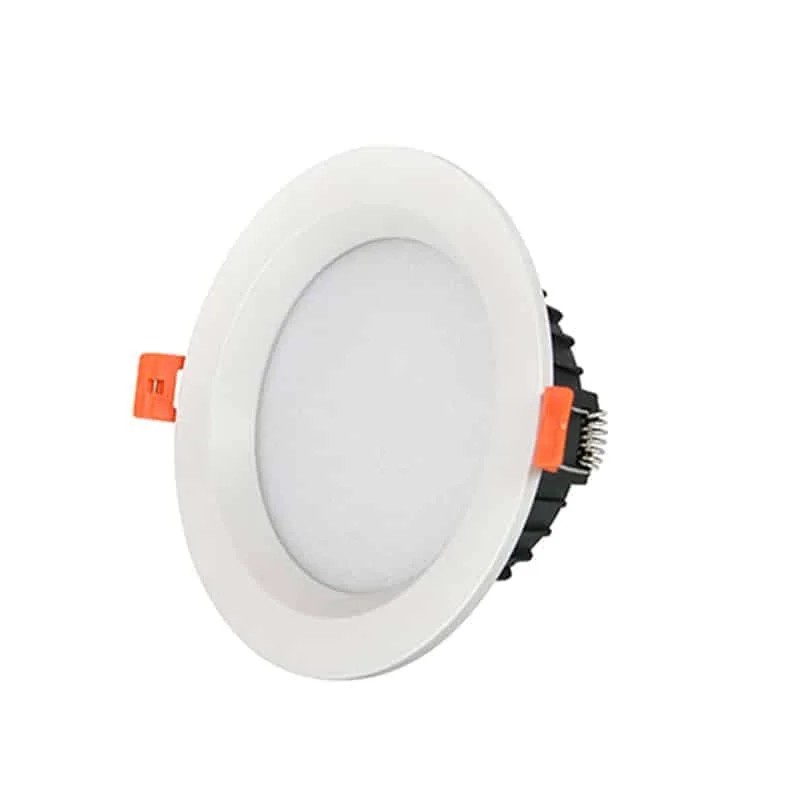

Ultra-thin Low Profile LED downlight IP44

| Model: HM-DL-G07
Key Feature
This ultra-thin LED downlight is only about 50mm in height, and its slim design makes it very suitable to do recessed installation in low-profile ceiling projects. This recessed downlight looks like a slim panel light, but it is a backlit design with much better heat performance and a protection grade up to IP44 max, it is okay to be used in the kitchen, washroom, toilets, etc.

Wattages: 7W 9W 12W 15W 18W 24W
Inch: 3inch 4inch 5inch 6inch
Out Cut: 75mm, 95mm 120mm, 160-165mm, 170mm
Installation: Recessed mounted
IP Rate: IP44 for front
Free flicker: Yes
Control way: ON/OFF
Products Details

Materials & Finished

  • Heat sink: die-cast aluminum body, Matt white as a standard, black powder-coated can be optional.
  • Cover: Polycarbonate PC Cover.
  • Spring Clip: steel, strong

Control Gear/ Led driver

  • Led driver brand: Guanx/LiFud/ Eagleries as standard; Osram/Philips/ Boke/ EUCHIPS/ SUNRICHER brand as optional.
  • Input voltage: 110/220-240VAC 50/60Hz.
  • Power Factor:>0.5 as standard, 0.9 optional
  • Efficiency:>87%
  • IP Grade: IP22
  • THD:<15%
  • Surge protection: 1-2KV
  • Working temp: -25℃/+55℃
  • Certificate: TUV CE RoHS ENEC CB
  • Warranty: 3/5 years.

Optical

  • Light source brand: Bridgelux/Osram SMD chips
  • Chips lumens:110-130lm/W
  • CRI: >80 as standard, >90 is optional
  • UGR:<20
  • Color temperature: 2700-3000K, 4000-4500K, 5700-6500K
  • SDCM:<5
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80)
