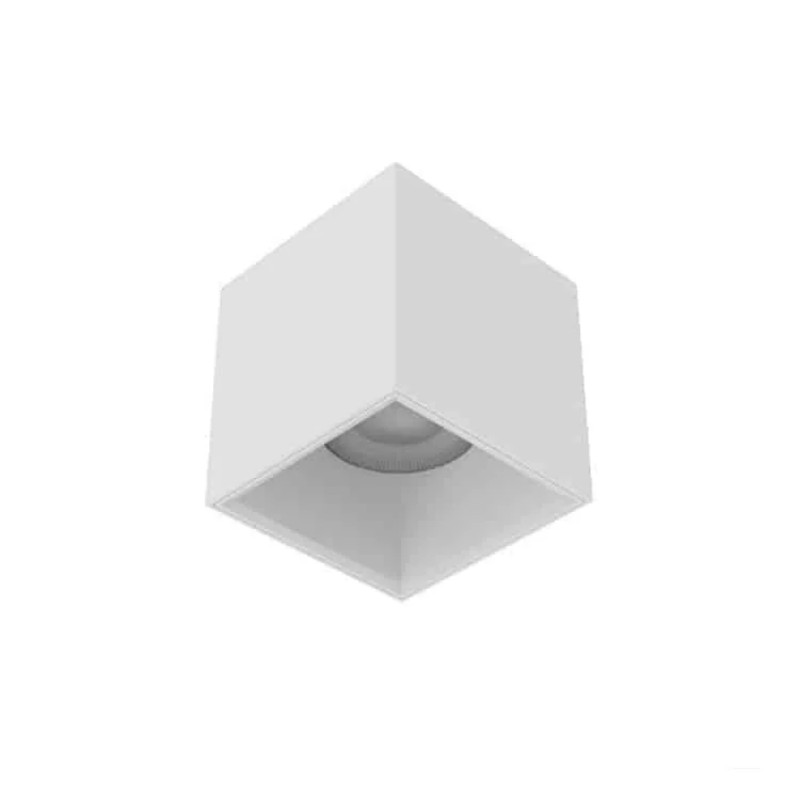

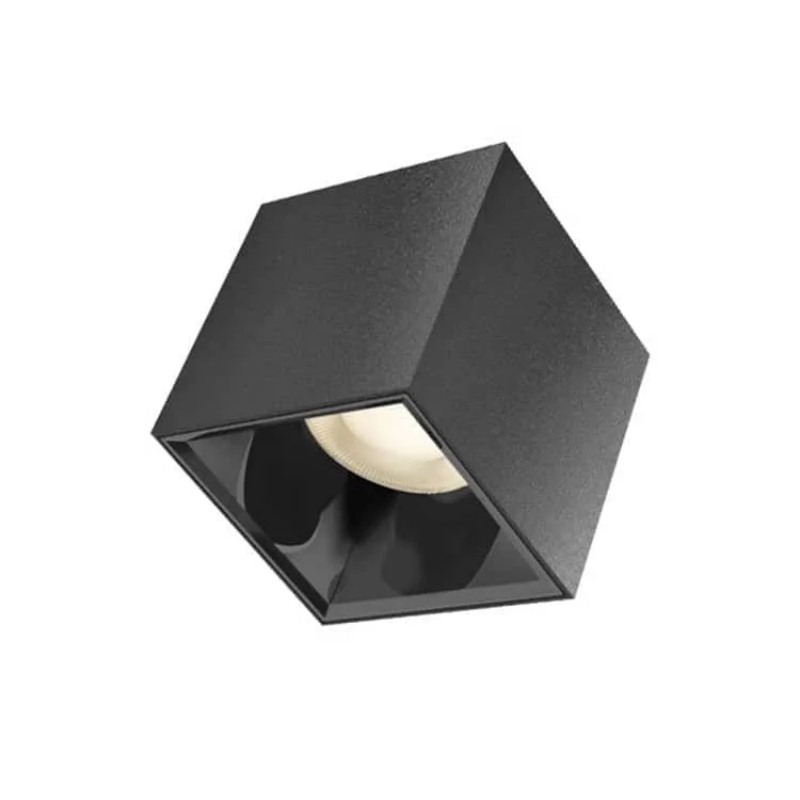

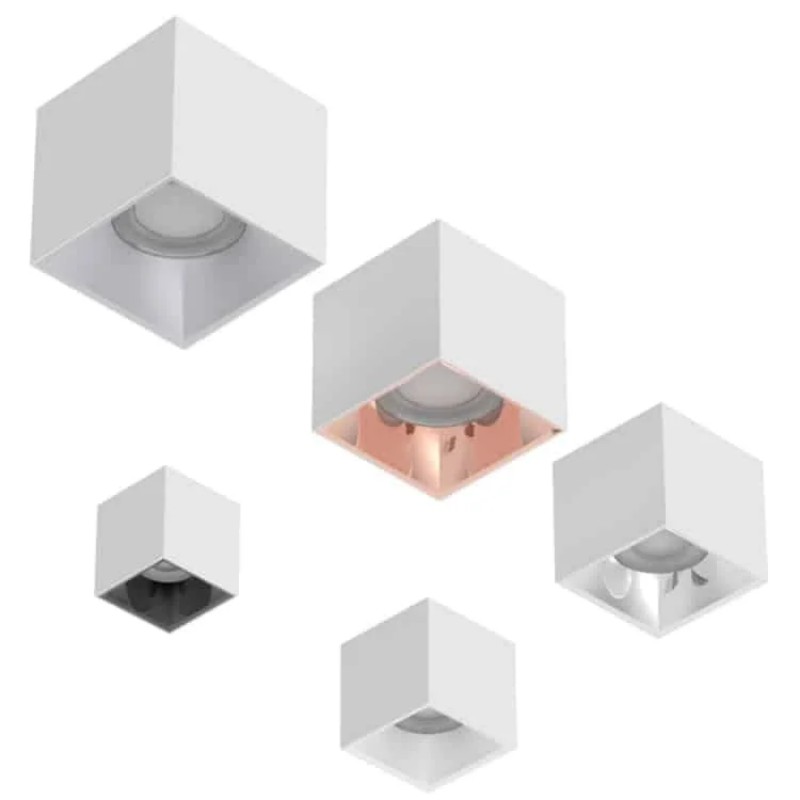

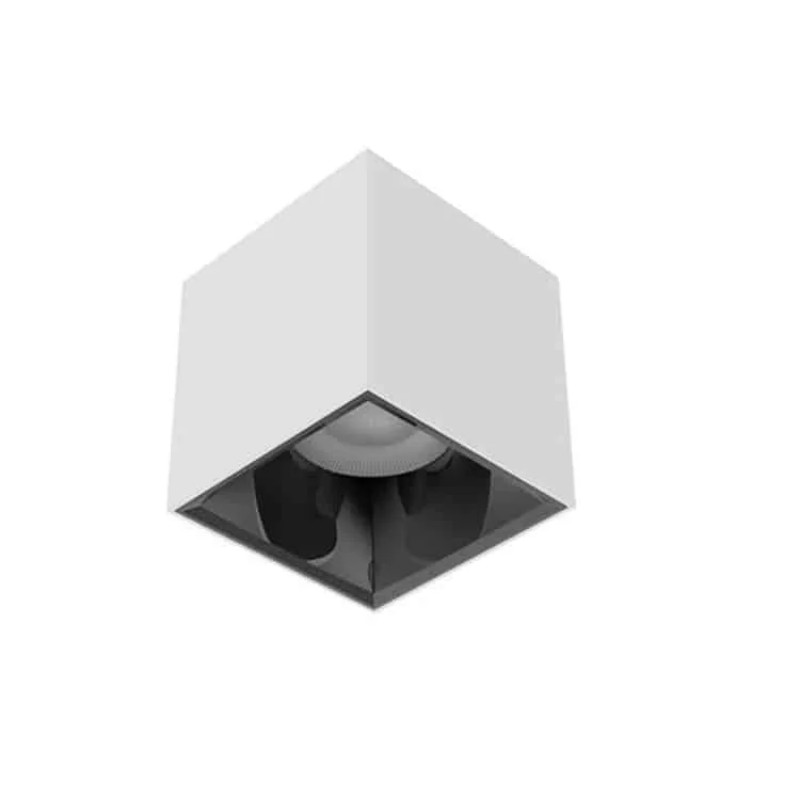

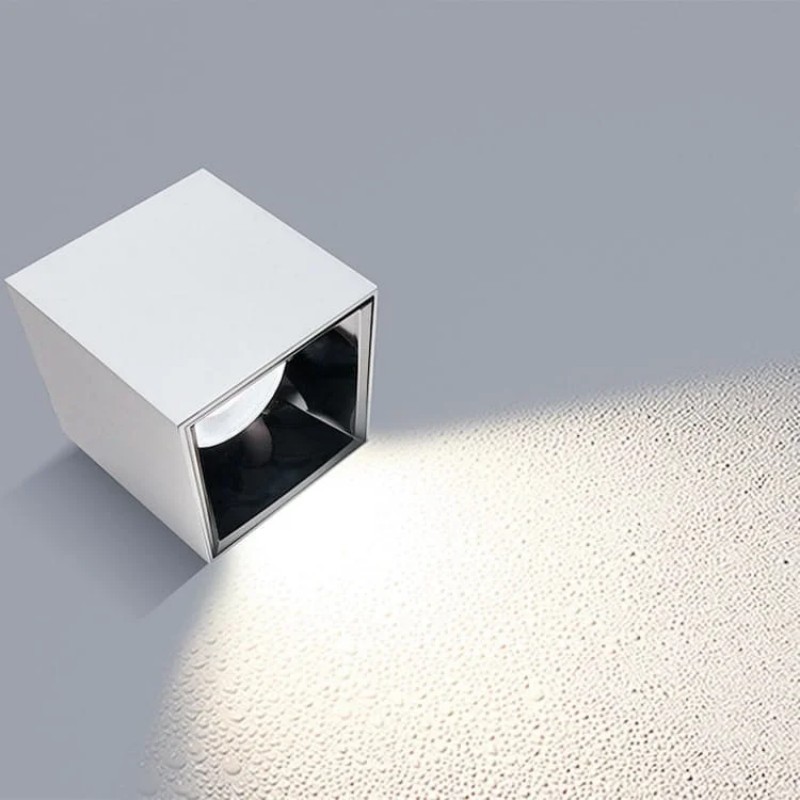

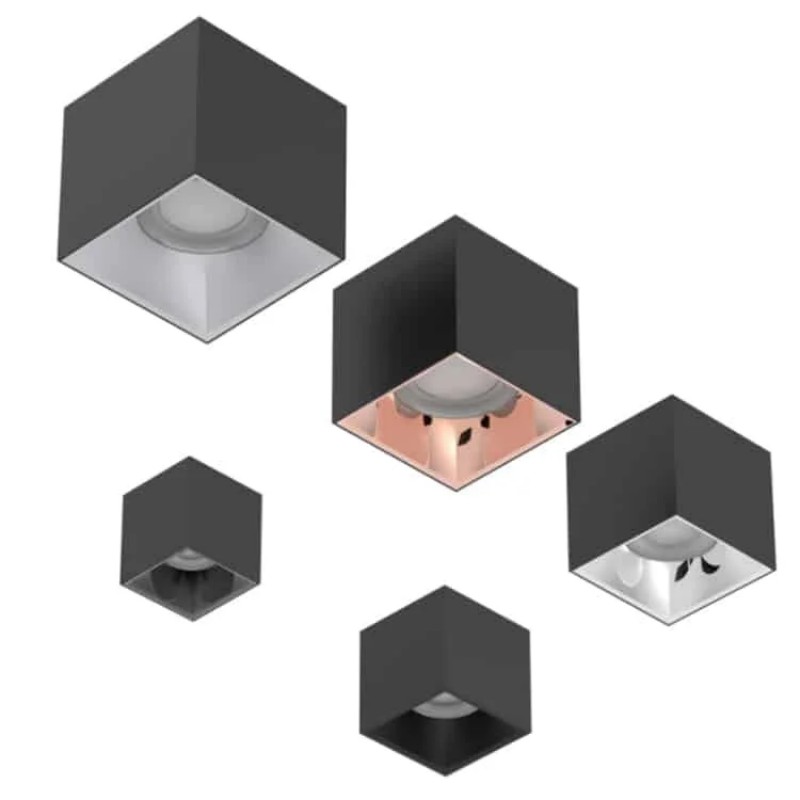

IP65 Waterproof Square Surface Downlights

| Model:HM-DL-S02
Key Feature
These surface square LED downlights are designed with waterproof rubber, an IP65 waterproof function, and a high lumens PC lens, and deep reflectors with a low glare. Available in white, black, silver, and gold for reflector options, widely used for an outdoor area like a corridor, balcony, or wet environments like washer rooms, toliets, bathrooms, etc.

Power:10W 15W 20W 25W 30W 40W
Size:L80*W80*H83mm/L100*W100*H96mm/L130*W130*H123mm/L130*W130*H123mm/L150*W150*H136mm/L170*W170*H156mm

Products Details

Materials & Finished

  • Body: aluminum body, matt white/black.
  • Lens: PMMA /PC materials.
  • Surface accessories: Metal.
  • Reflector: PMMA, White/black as standard, silver, gold options.
  • Gland: Stainess steel, waterproof.

Control Gear / Led driver

  • Driver brand: Eagleries/LiFud/Guanx/Osram/Philips are optional.
  • Input voltage: 110/220-240VAC 50/60Hz
  • Output Voltage: 36VDC
  • Power factor:>0.5 or 0.9
  • Free flicker: Yes
  • THD:<15%
  • Efficiency:>87%
  • IP Rating: IP22
  • Certificates: BIS CE RoHS ENEC CB
  • Warranty: 3/5Years

Optical

  • Light source brand: Bridgelux as standard, Osram/Citizen available
  • Color rendering index:>90
  • Lumens:100lm-120lm/W output.
  • SDCM:<5 or <3
  • Beam angle: 24/36/55° options.
  • Lifetime:>50000Hrs
  • Low glare value: UGR<17
  • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
