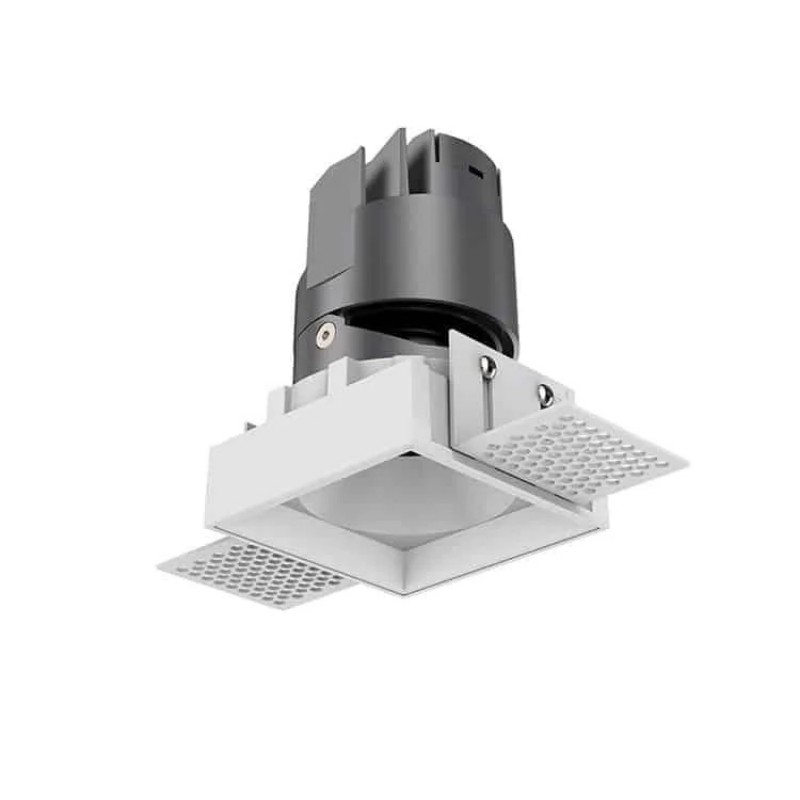

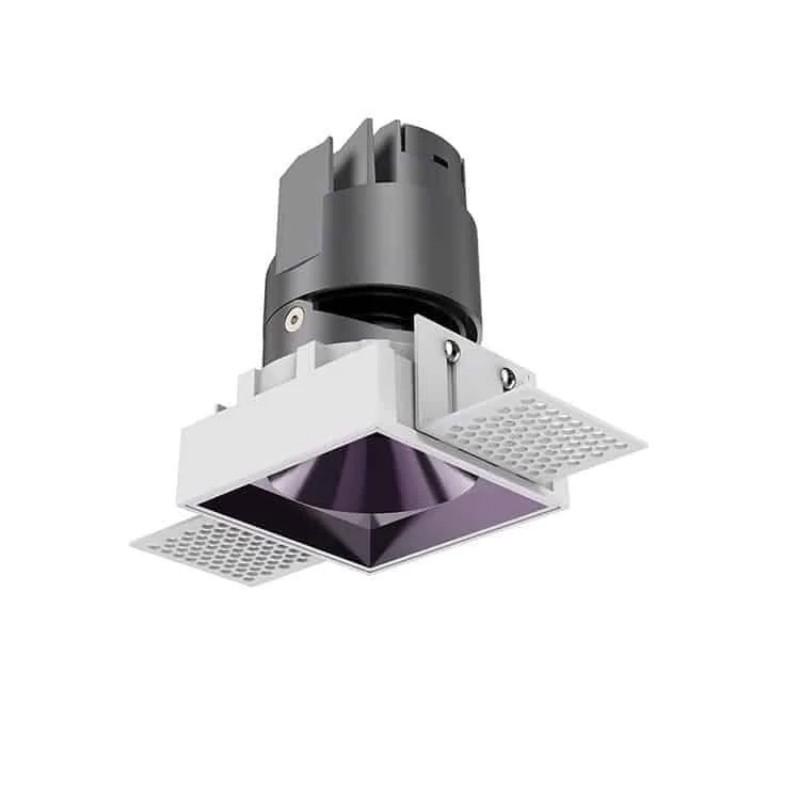

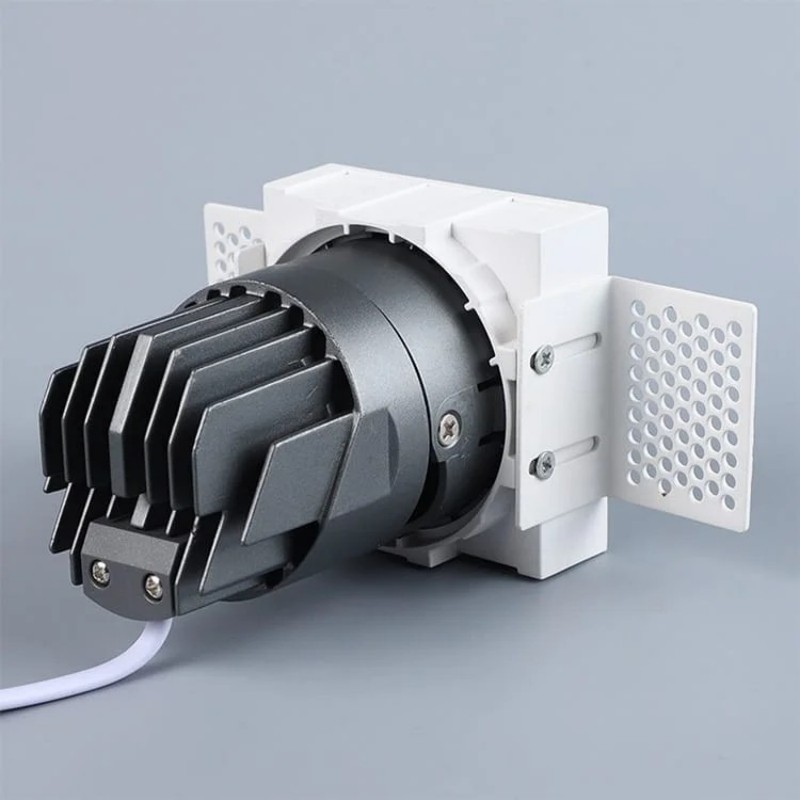

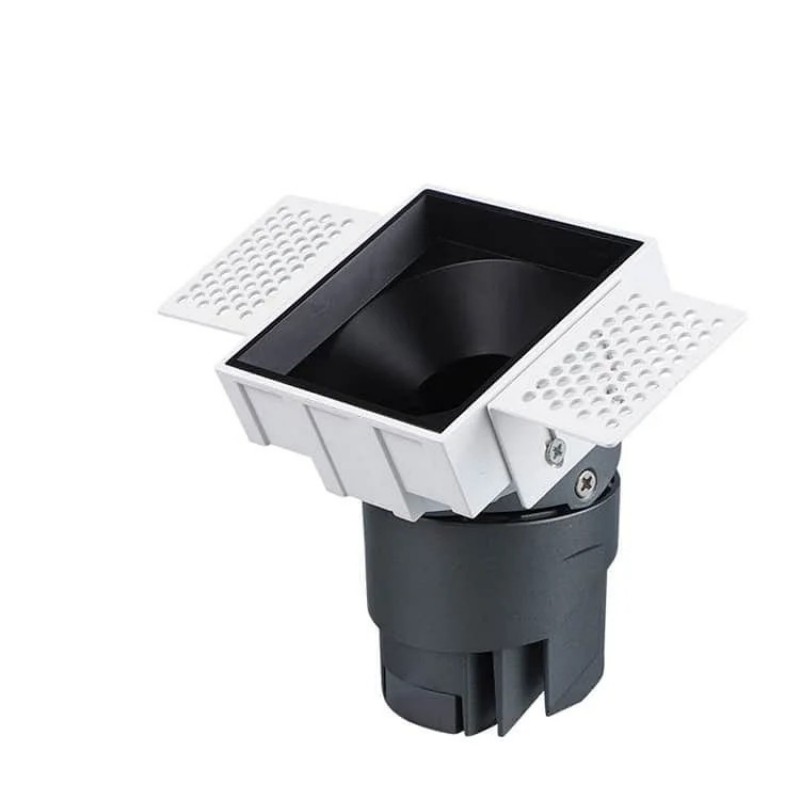

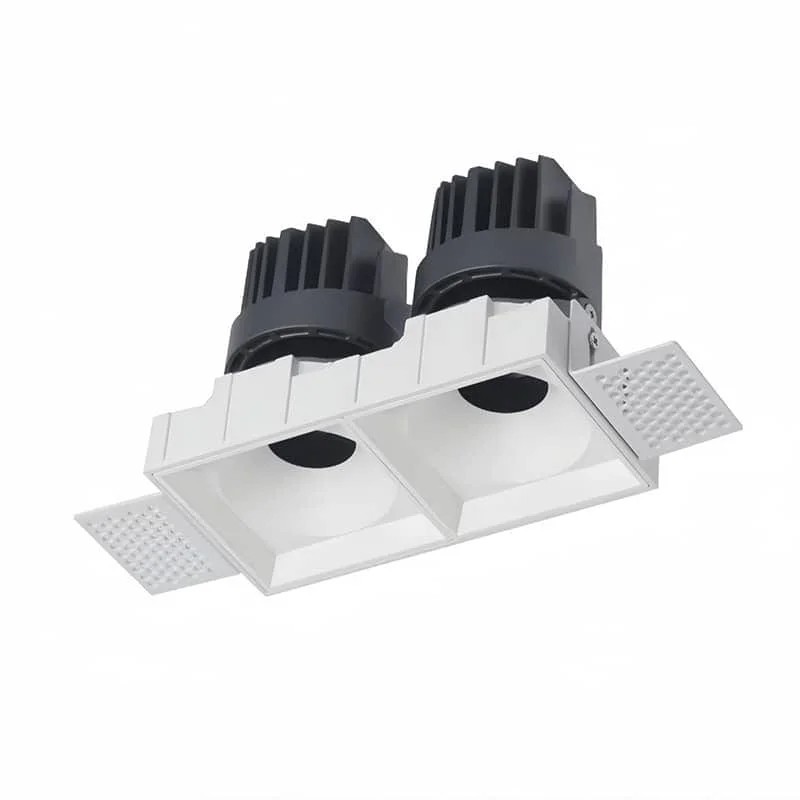

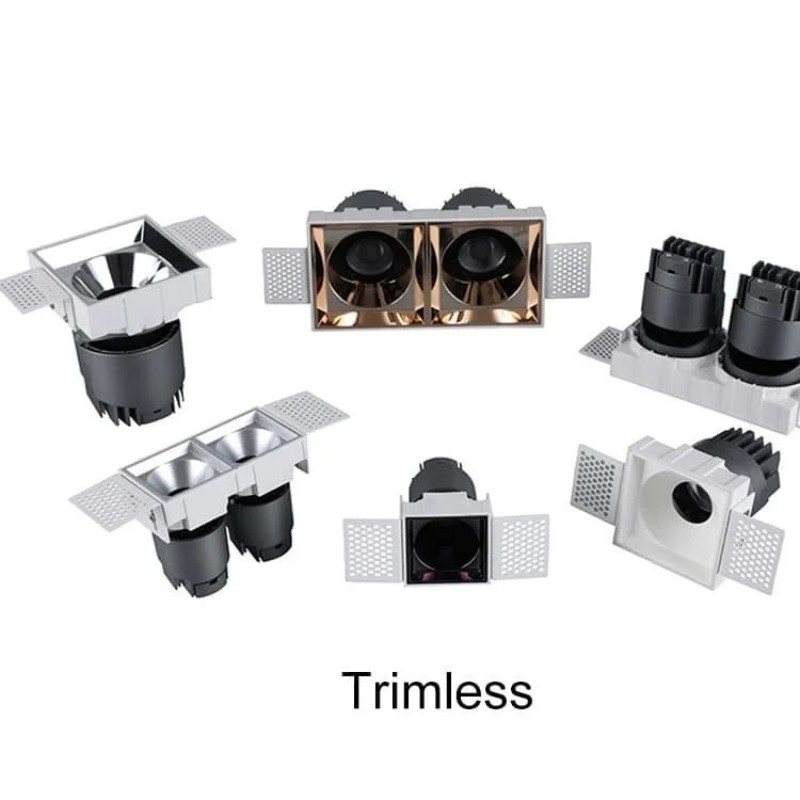

Trimless Square Downlights Single/Double Head

| Model: HM-DL-S01
Key Feature

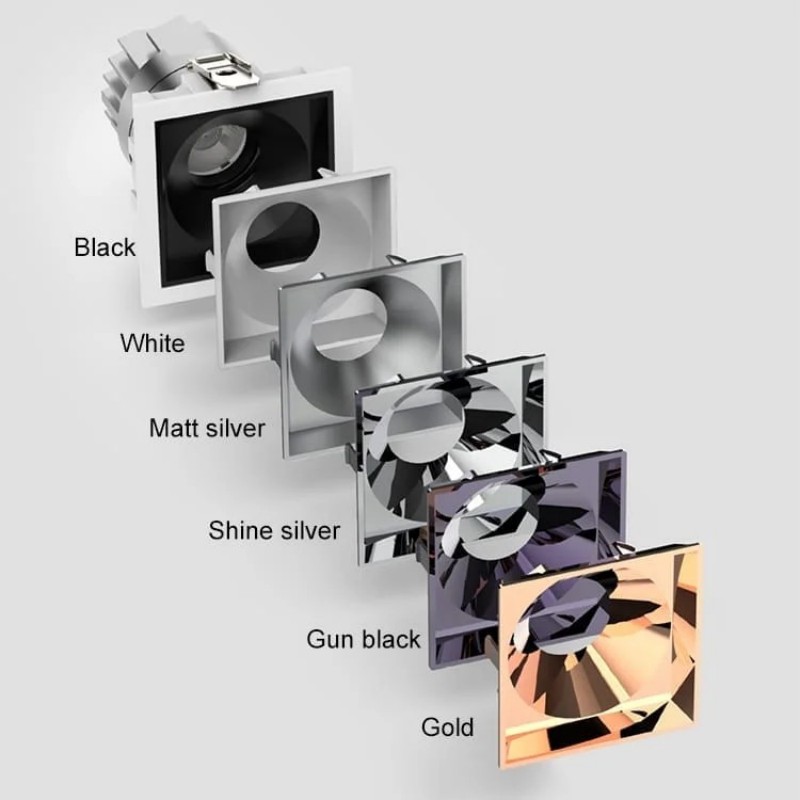

These recessed square downlights are trimless designs with single and double heads. It is an adjustable 30° direction design, the reflectors can be matt black, white, matt silver, gun black, or gold options. They are widely used for different commercial lighting projects.

Power:7W 10W 12W 15W 20W & 7W*2 10W*2 12W*2 15W*2 20W*2
Size:LW65*H85mm/LW85*H85mm/LW85*H85mm/LW105*H124mm/LW105*H134mm
115*65mm/155*85mm/155*85mm/195*105mm/195*105mm
Shape: Square and rectangle
Installation: recessed mounted ceiling
Lumens: 90-110lm/W
UGR:50000Hrs
Products Details

Body & Finished

  • Heat sink: die-cast aluminum body, black powder-coated.
  • Reflector: PMMA, different color options
  • Trimless hardware: metal with a hole, easy to fix by screws.

Control Gear/Led driver

  • Control Gear brand: LiFud/Eagleries as standard, Osram/Philips drivers are optional.
  • Input voltage: 220-240VAC 50/60Hz
  • THD:<10%
  • Power Factor: 0.5 as standard, >0.9 PF optional.
  • Efficiency:>85%
  • Certificates: CE TUV CB, ENEC
  • Warranty: 3/5 years

Optical

  • Led chips brand: Bridgelux /Osram / Citizen
  • Lumens: 120-140lm/W
  • CRI:>90
  • Color temp: 3000K warm white, 4000-4500k cold white, 5700-6200k cold white
  • LM80
  • Lifetime: >100000hrs
