Slim Adjustable Spotlight for Low Profile Cut out 55mm 75mm

| Model: HM-DL-G05
Key Feature

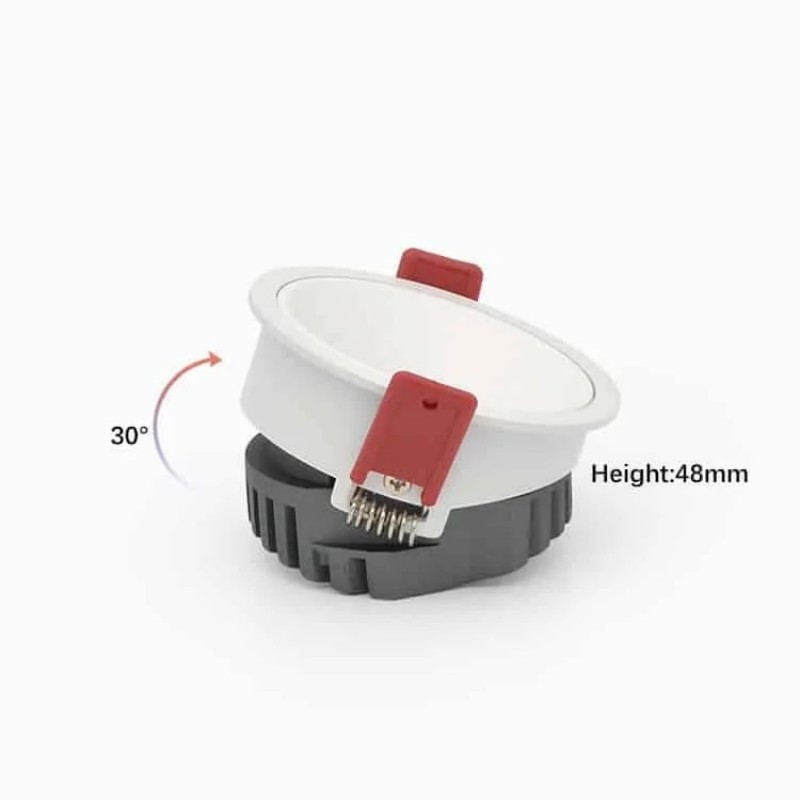

This adjustable spotlight downlight is designed as an ultra-thin heat sink for a low profile. The height is less than 50mm, very slim, and it is also to be adjustable at 30° which can be used as a wall washer downlight and widely used for residential areas and commercial areas full of low ceilings.

Power:7W 10W
Size:Ø65*H45mm/Ø85*H48mm

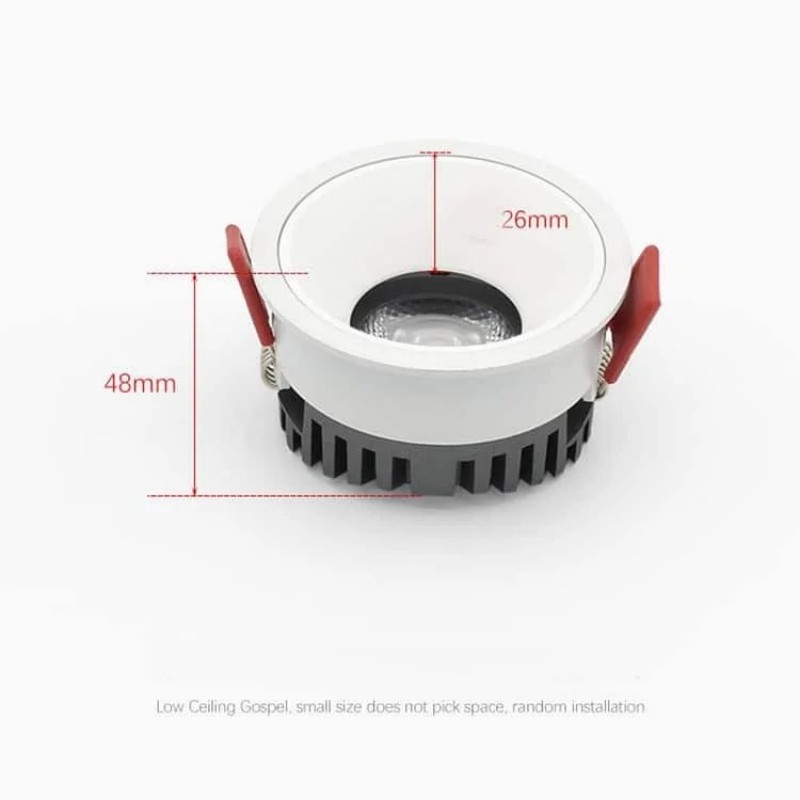

Height: <48mm for low profile
Mounting: Recessed into the ceiling
Shape: Round
Body color: white as standard, matt black is optional
Reflector colors: Matt white, matt black, gun black optional
Honeycomb: is optional
Working temperature: -25/+60℃
Control way: ON/OFF as standard, dimmable, or Zigbee smart options
Products Details

Materials & Finished

  • Heat sink: Die-cast aluminum heat sink, Black/white painted.
  • Outer trim: Multiple designs, white trim as standard, black powder-coated optional.

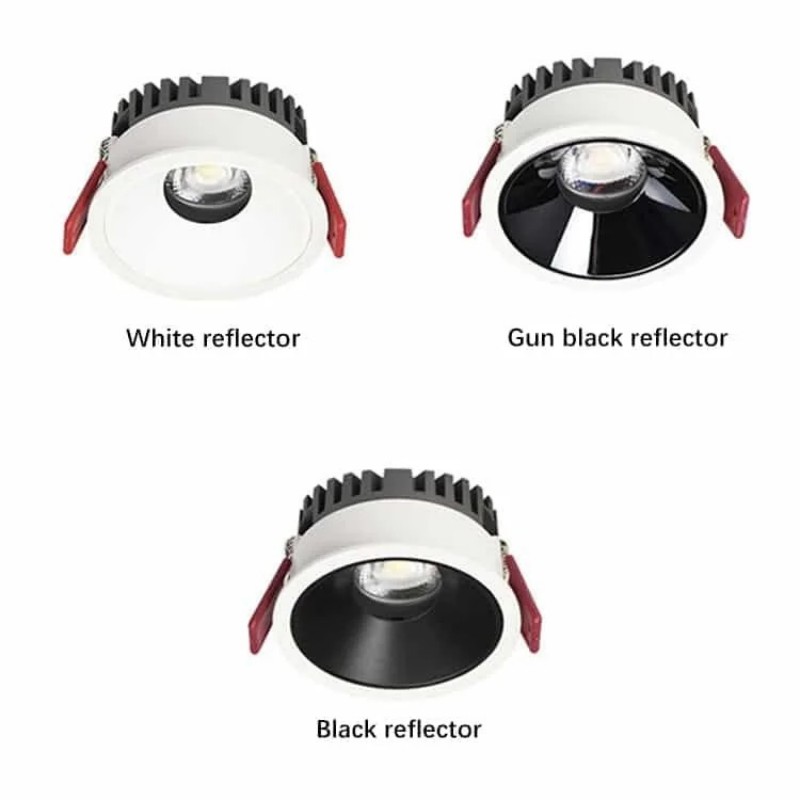

  • Reflectors: PMMA. White/Black as standard, silver/gun black options.

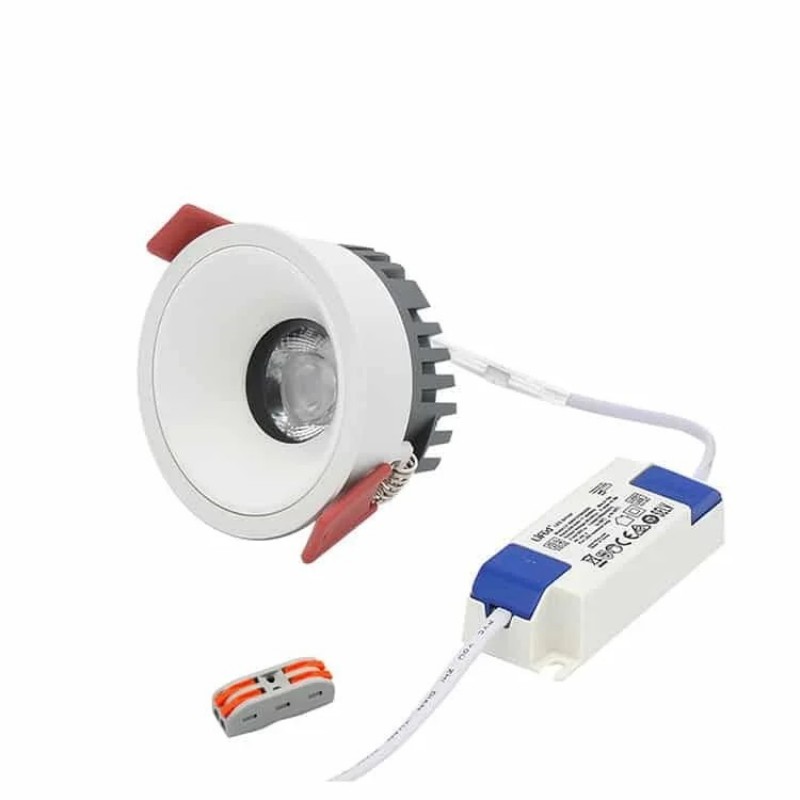

  • Transformer: LIFUD Driver for 220-240VAC 50/60Hz; or DONE Driver for 100-277VAC 50/60Hz. Other brands like Philips/Osram are available as well.
  • Led chips: Bridgelux COB LED Chips, Low SDCM Rating, highest brightness.
  • Mounting Clips: Metal body, strong strength, easy to do the recessed installation
  • Honeycomb: plastic, black color, it is not a standard part, but it is optional.

Electrical & Optical

  • Input voltage:100-277VAC 50/60Hz or 220-240VAC 50/60Hz.
  • Power Factor:>0.5 or >0.9
  • CRI:>90
  • Lumens:90lm-100lm/W output.
  • SDCM:<5
  • Efficiency:>88%
  • IP Grade: IP22 Indoor use
  • Beam angle: 15/24°/36°
  • Working life:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:3/5 Years.
  • Color temperature: 2700K-3000K Warm white, 4000-4500K Daylight, 6000-6500K cold white.
