Recessed Adjustable Beam Angle Downlights

| Model: HM-DL-G04
Key Feature

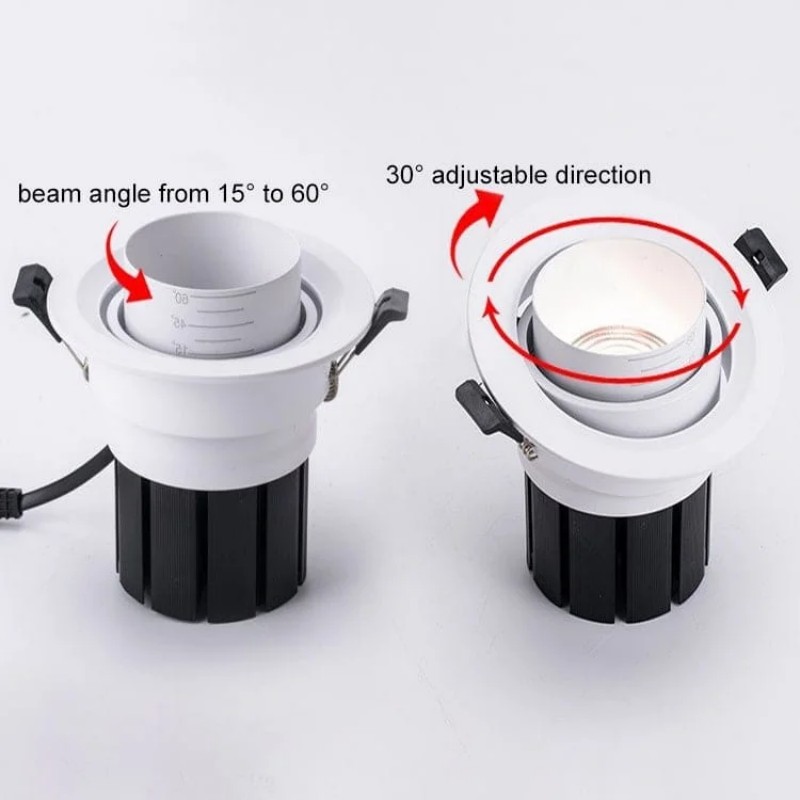

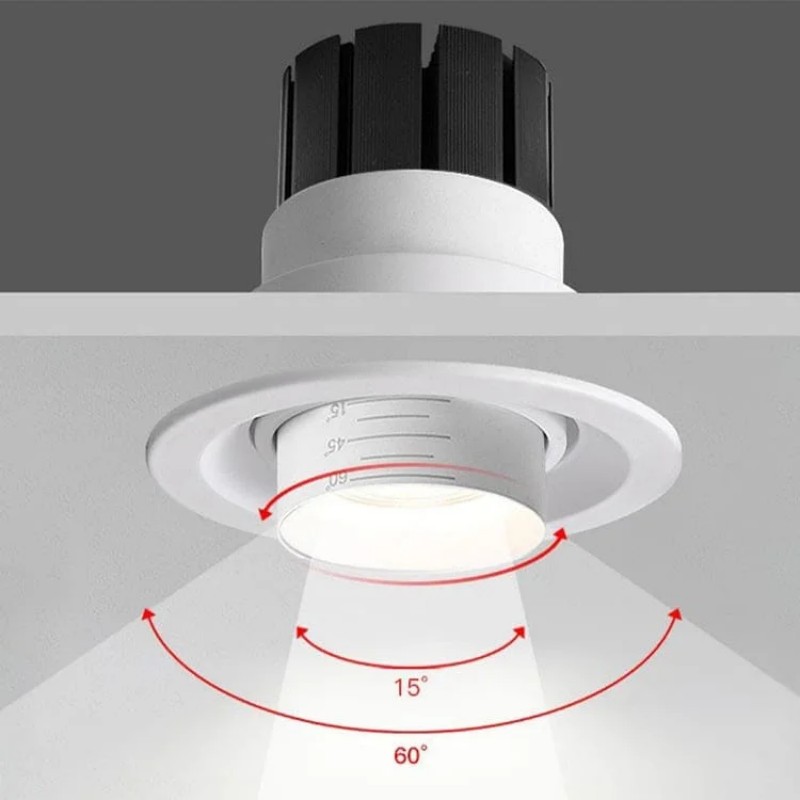

Adjustable beam angle downlights, also known as zoomable spotlight/downlights. Rotate the front ring to freely adjust the beam angle to any point between 15° and 60°. The 15-degree beam angle downlight can be used as a spotlight for accent lighting — perfect for highlighting artwork, displays, or architectural details. Or choose the wider 60° beam for general lighting needs. One lamp, multiple uses, cost reduced and efficiency improved.

Wattage: 7W 10W 15W 20W 25W
Size:Ø93*H90mm/Ø93*H90mm/Ø115*H95mm/Ø143*H115mm/Ø143*H115mm
Mounting: Recessed

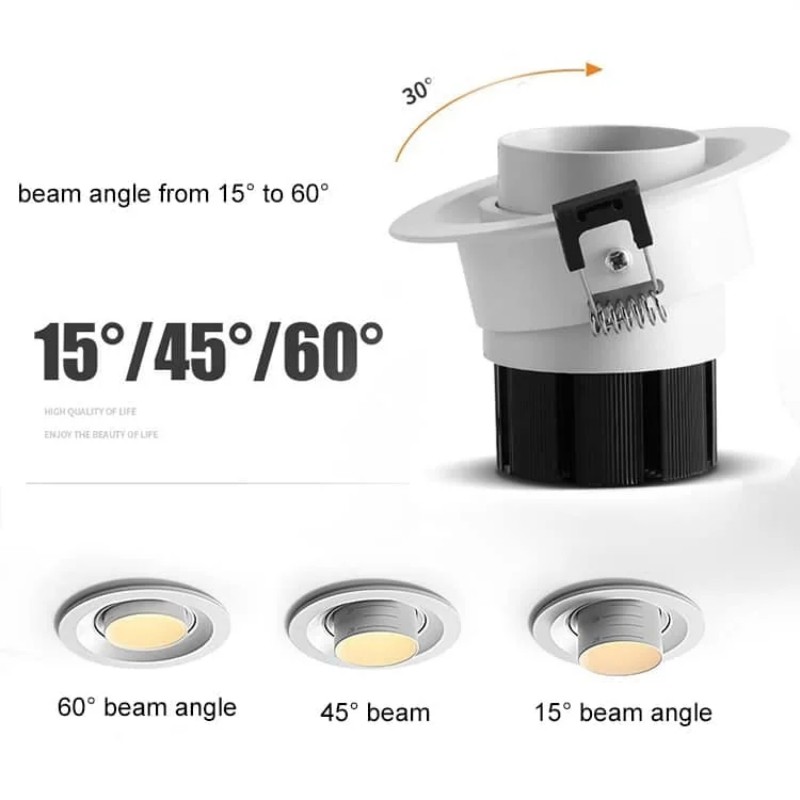

Beam angle: adjustable range from 15°, to 45° to 60°,
Adjustable direction: Yes
Control Way: ON/OFF as standard. dimmable/Smart Zigbee/ CCT Tunable options
Free flicker: Yes
Working temp: -25/+55℃
Storage temp: -30/+60℃

Products Details

Materials & Finished

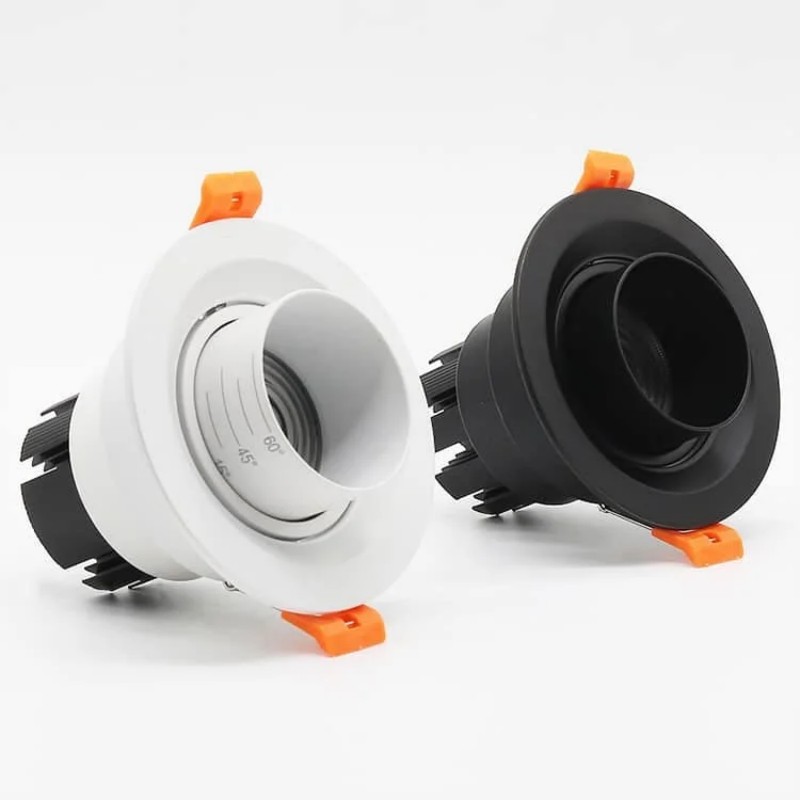

  • Housing: Aluminum body, white finished as standard; black optional.
  • Reflector: white as standard; black/silver/ Gold optional.
  • Cover: PMMA cover, stripe & frosted
  • Spring Clips: Iron body, strongest strength. Easy to do the recessed ceiling installation

Control Gear / Led driver

  • Led driver brand: LiFud/ Eagleries as standard; Osram/Philips/ Boke/ EUCHIPS/ SUNRICHER brand as optional.
  • Input voltage: 110/220-240VAC 50/60Hz.
  • Power Factor:>0.5 as standard, 0.9 optional
  • Efficiency:>85%
  • IP Grade: IP20
  • THD:<15%
  • Surge protection: 1-2KV
  • Working temp: -25℃/+55℃
  • Certificate: TUV CE RoHS ENEC CB
  • Warranty: 3/5 years.

Optical

  • Light source brand: Bridgelux/Epistar/Osram COB
  • Chips lumens:120-150lm/W
  • CRI: >92
  • UGR:<15
  • Color temperature: 2700-3000K, 4000-4500K, 5700-6500K
  • SDCM:<3
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80)
