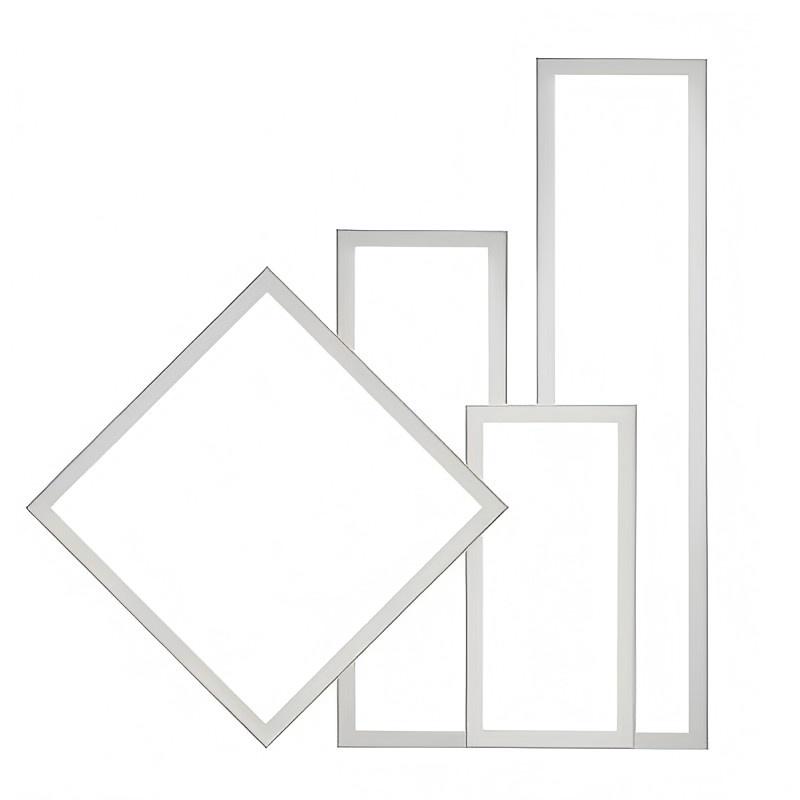

Customized size LED Panel Light

Customized Backlit LED Light Panel

We provide customized service in size (dimension) for backlit panel lights, such as 1200x150mm, 1200x100mm, 1200x200mm, 1200x1000mm, 1200x800mm, 1000x1000mm, and 2000x1000mm., etc. The different installation ways or other functions, such as 0-10V/DALI dimmable, Selectable CCT, and emergency backup kits are also optional.

Type: Backlit
Installation: recessed as standard, suspended, and surface mounted optional
Size: 1200x150mm; 1200x100mm, 1200x200mm, 1200x1000mm, 1200x1200mm or 1500x1200mm., etc.
Lumens: 100-130lm/W output
Control way: ON/OFF as standard, the dimmable is optional
Working temp: -25/+65℃
Lifetime: 50000hrs
Certificates: CE RoHS
Warranty: 3/5 years
Lead time: 10-20days according to requested quantities

Overview

We are a professional led light manufacturer, and supplier in China, Most of the led lights we can provide. We have more than 200 customers around the world,if you want to do customized panel light,we are your best partner.

Product Advantages

1.Back-lit design without LGP, avoiding any yellowing change.

2.PCB with lens, Uniform luminescence, luminous efficiency as high as 100lm/w.

3.Aluminum frame, white/silver/Black available.

4.High-quality transformer included, free flicker, better lighting performance.

5.Driver brand: Eagleries as standard; LiFud/Euchips/Osram/Philips optional.

6.Light source brand: Bridgelux as standard, Osram/Citizen available

7.Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K

8.TRIAC/0-10V/DALI dimmable

9.Emergency backup (5W/7W with 1hrs 2hrs or 3Hours duration)

10.Surface mounted frame and suspended ropes.
