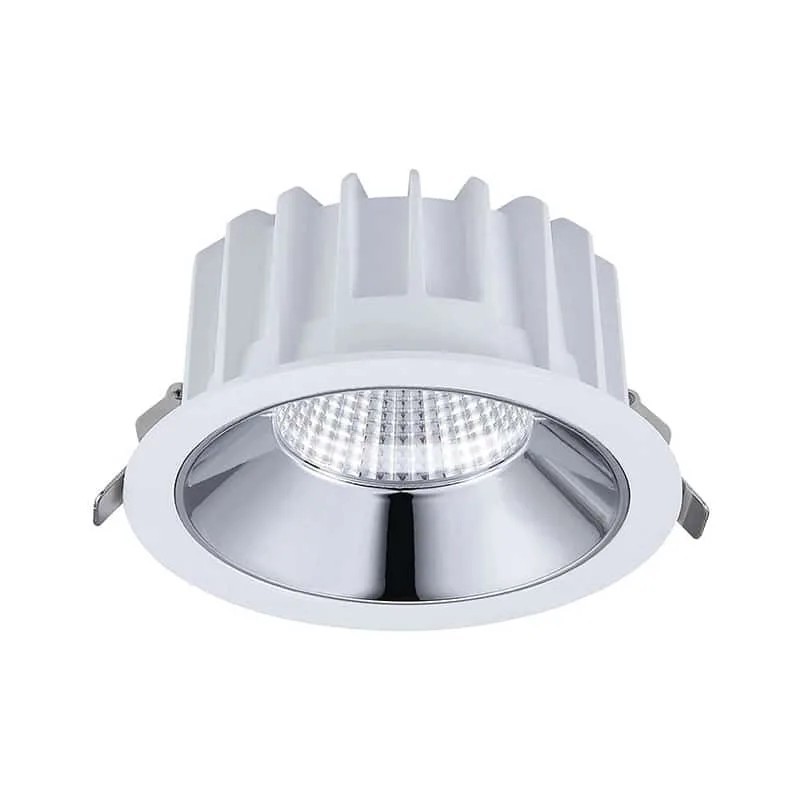

Commercial Led Downlights 15W-50W

| Model: HM-DL-G09
Key Feature
This is the latest high-end commercial downlight with two reflectors, which will be much better in anti-glare performance. The reflector beam angle includes both a narrow beam angle (15/24/36°） and a wide distribution (60°). Widely used for a commercial or industrial lighting projects.

Wattages: 15W 25W 35W 40W 50W
Dimension:Φ115*H60mm/Φ136*H70mm/Φ162*H80mm/Φ195*H95mm/Φ220*H105mm
Installation: Recessed
Type: Fixed
IP grade: IP54
Reflector: Shining silver as standard, black/white options
Storage temp: -30/+60℃
Manufacturer warranty: 3/5 years
Free flicker: Yes
Products Details

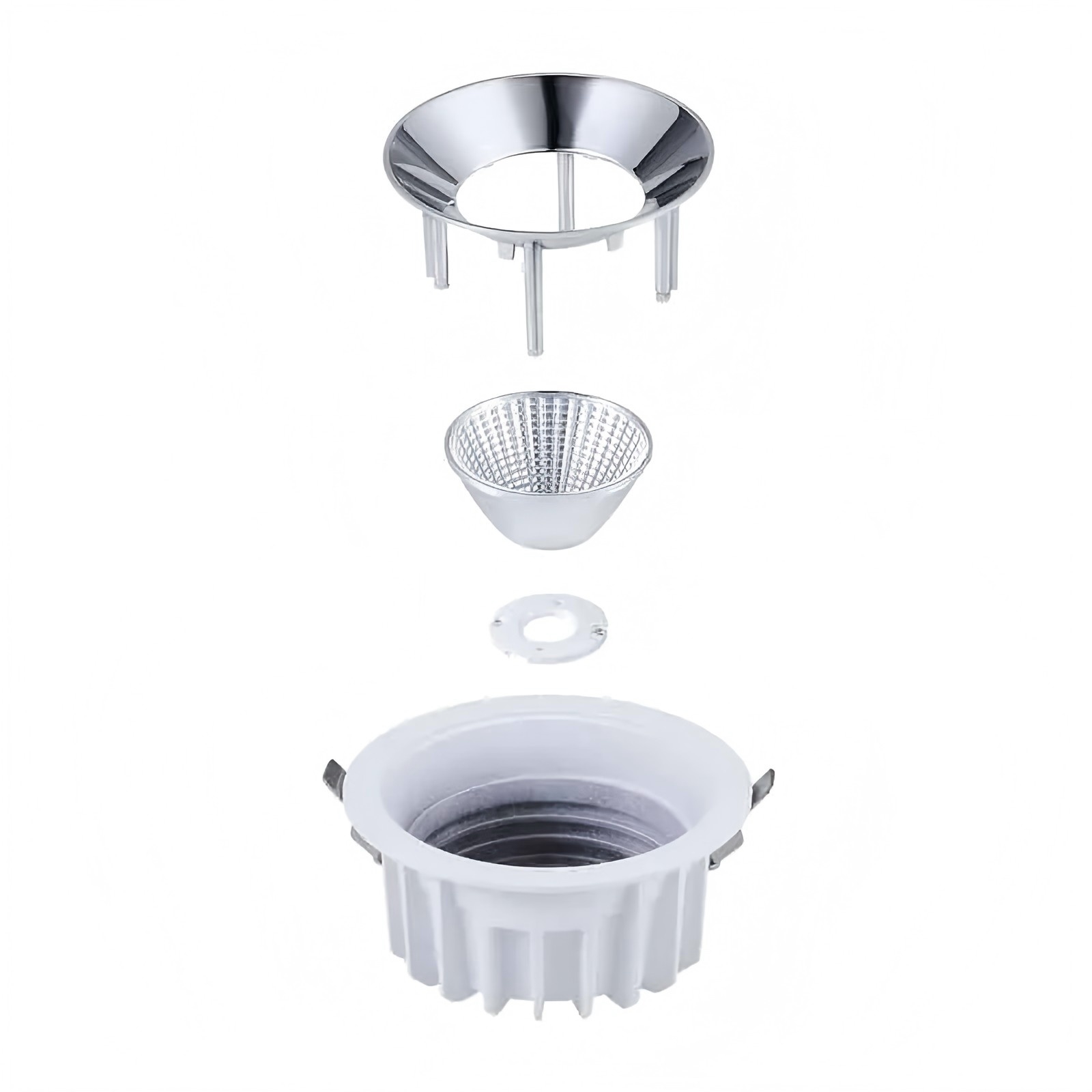

Materials & Finished

  • Housing: aluminum, matt white as standard, matt black is available
  • Reflector: PMMA materials,shining silver reflector is the most popular, white/black reflectors are optional.
  • Springs/Clips: Steel, high strength to fix onto the ceiling.
  • Gland: stainess steel, waterproof

Control Gear / Led driver

  • Driver brand: LiFud/Eagleries/Philips are optional.
  • Input voltage: 110/220-240VAC 50/60Hz
  • Output Voltage: 36VDC
  • Free flicker: Yes
  • Power factor:>0.5 or >0.9
  • Dimmable: No.
  • THD:<15%
  • Efficiency:>88%
  • IP Rating: IP22
  • Certificates: CE RoHS ENEC CB
  • Warranty: 3/5Years

Optical

  • Light source brand: Bridgelux as standard, Osram available
  • Color rendering index:>90
  • Lumens:100lm-120lm/W output.
  • SDCM:<5 or <3
  • Lifetime:>50000Hrs
  • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
