Anti-glare Cross Lighting Spotlights 5W-20W

| Model: HM-DL-G01
Key Feature

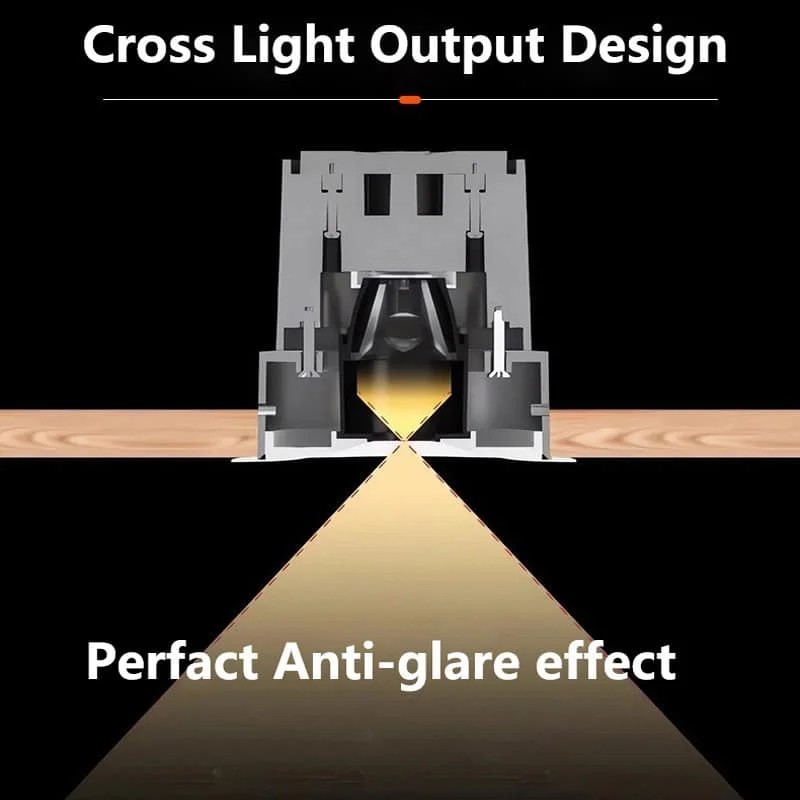

These recessed ceiling spotlights adopt a cross-lighting and small-hole anti-glare design. They offer super anti-glare performance with a deep reflector and an 8mm width Luminous surface. It can be dimmable ceiling spotlights, 3CCT downlights, or Zigbee smart spotlights. All our spotlights are flicker free because of the brand driver and chips. It is available for commercial lighting, hotel and shopping mall,Villa lighting, and home lighting.

Power:5W 7W 10W 12W 14W 18W 20W
Size:Ø65*H51mm/Ø75*H59mm/Ø85*H59mm/Ø90*H75mm/Ø90*H75mm/Ø90*H105mm/Ø90*H105mm
Mounting: Recessed
Finished: Matt white/ matt black
Cut-out: 75mm
Shape: Round
Light source: COB
Control way: ON/OFF, dimmable/ CCT selectable options
UGR:<7
Working temp: -30/+60℃
Products Details

Materials & Finished

  • Trim frame: aluminum body, matt white/black.
  • Lens: PMMA materials, black finish
  • Springs/Clips: Steel, high strength to fix onto the ceiling.
  • Heat sink: Aluminum, black color finished

Control Gear / Led driver

  • Driver brand: Eagleries/LiFud/Guanx/Osram/Philips are optional.
  • Input voltage: 110/220-240VAC 50/60Hz
  • Output Voltage: 36VDC
  • Power factor:>0.5 or 0.9
  • Free flicker: Yes
  • THD:<15%
  • Efficiency:>87%
  • IP Rating: IP44
  • Certificates: BIS CE RoHS ENEC CB
  • Warranty: 3/5Years

Optical

  • Light source brand: Bridgelux as standard, Osram/Citizen available
  • Color rendering index:>90 (97max)
  • Lumens:100lm-120lm/W output.
  • SDCM:<5 or <3
  • Beam angle: 24/36°.
  • Lifetime:>50000Hrs
  • Low glare value: UGR<10
  • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
