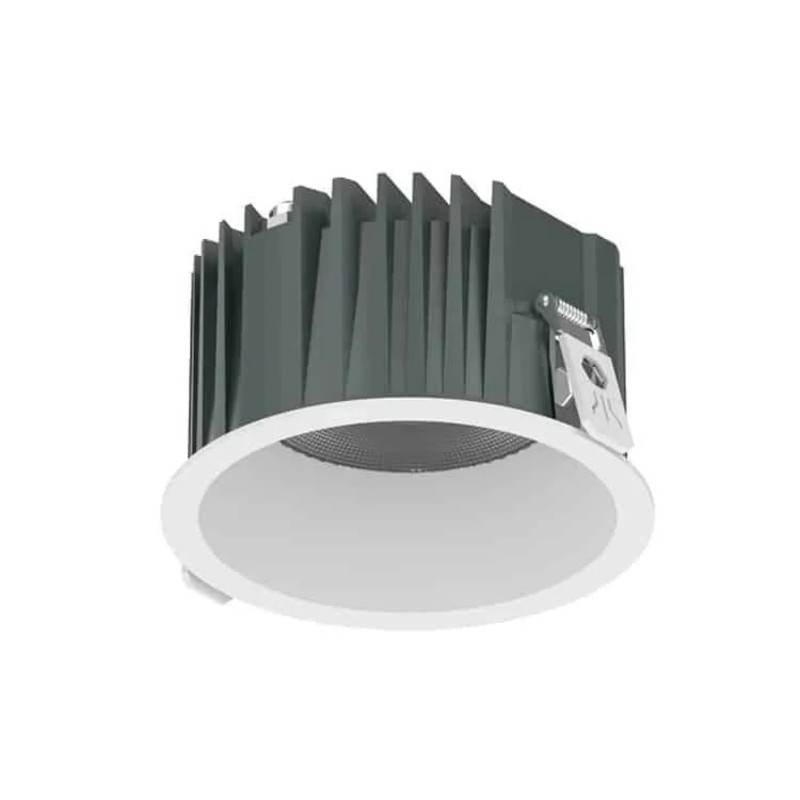

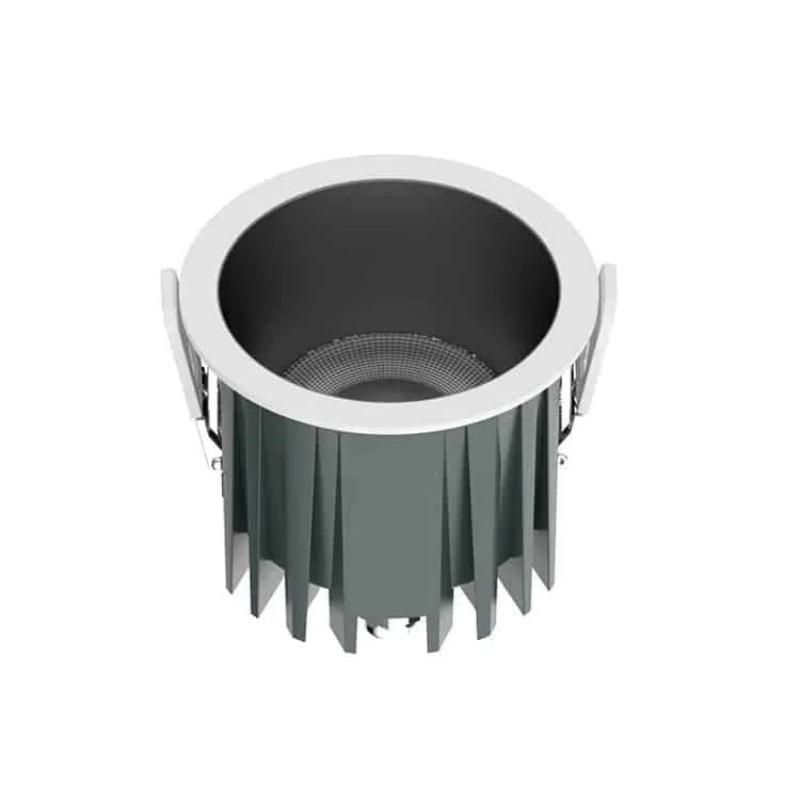

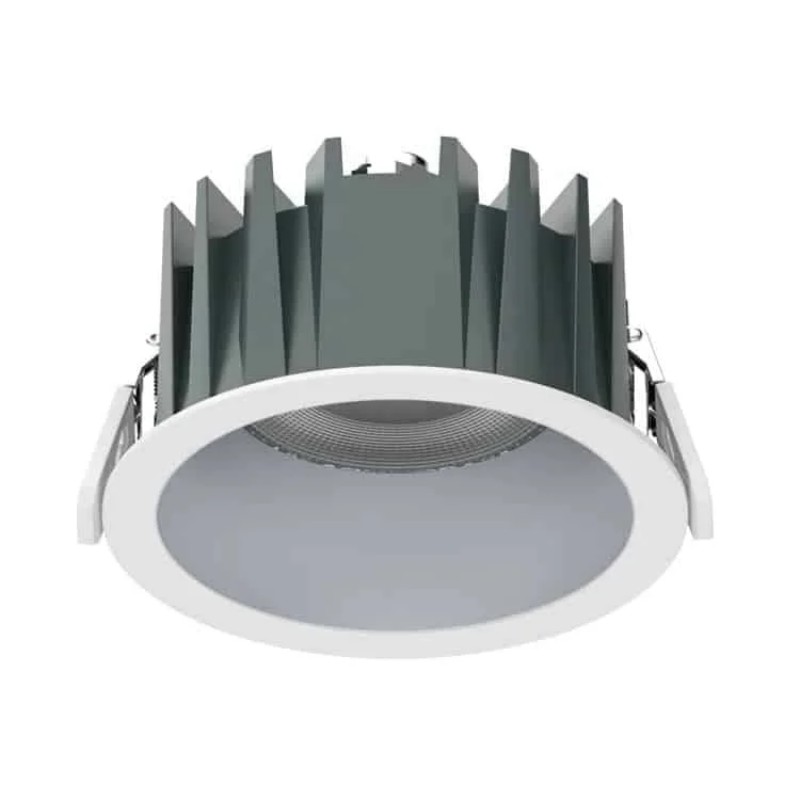

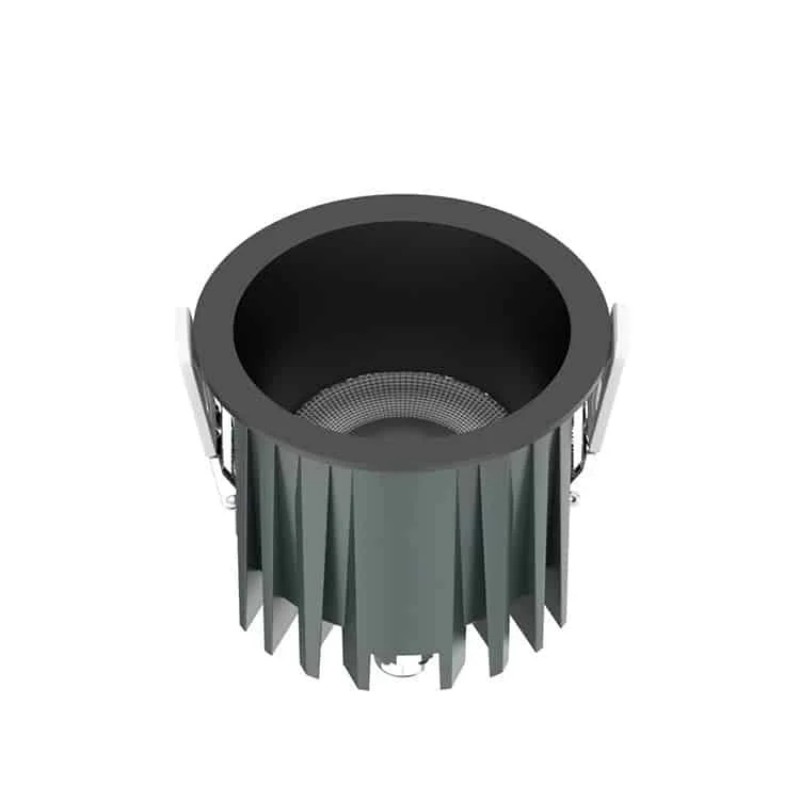

Waterproof Deep LED Downlights

| Model: HM-DL-G02
Key Feature
This high-end recessed fixed LED downlight has a deep & anti-glare design and waterproof ring to be IP65 protection. Its lens is a special structure with up to high lumen output. The trim is white/black optional, and the reflector includes white, black, or matt silver available. Suitable for high-quality commercial projects for wet areas.

Power:12W 15W 20W 25W 30W 40W
Size:Ø83*65mm/Ø83*65mm/Ø103*H70mm/Ø132*75mm/Ø160*80mm/Ø180*85mm
Mounting: Recessed
Type: Fixed
Wattage: 12W 15W 20W 25W 30W 35W and 40W
Anti-glare: Yes
Control Way: ON/OFF as standard. dimmable/Smart Zigbee/ CCT Tunable options
Free flicker: Yes
Working temp: -25/+55℃
Storage temp: -30/+60℃
Products Details

Materials & Finished

  • Housing: Aluminum body, white finished as standard; black optional.
  • Reflector: white as standard; black/silver/ Gold optional.
  • Cover: PMMA cover, frosted
  • Spring Clips: Iron body, strongest strength. Easy to do the recessed ceiling installation
  • Gland: IP65 Stainess steel waterproof gland

Control Gear / Led driver

  • Led driver brand: LiFud/ Eagleries as standard; Osram/Philips as optional.
  • Input voltage: 110/220-240VAC 50/60Hz.
  • Power Factor:>0.5 as standard, 0.9 optional
  • Efficiency:>85%
  • IP Grade: IP22
  • THD:<15%
  • Surge protection: 1-2KV
  • Working temp: -25℃/+55℃
  • Certificate: CE RoHS ENEC CB
  • Warranty: 3/5 years.

Optical

  • Light source brand: Bridgelux/Epistar/Osram COB
  • Chips lumens:120-150lm/W
  • CRI: >92
  • UGR:<15
  • Color temperature: 2700-3000K, 4000-4500K, 5700-6500K
  • SDCM:<3
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80)
